THE NAME:

Sample Part Number Of Bevel Gear Screw Jack

Model: JTS25 - JTS500
Categories: JTS Bevel Gear Jack »
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:


Sample Part Number Of Bevel Gear Screw Jack

JTS  -  150  -  US  -  600  -  H  -  IV  -  C  -  PP
 1          2        3         4       5      6       7      8

1. Jack Series
JTS: JTS series bevel gear screw jack

2. Lifting
 Capacity
150: maximum static lifting capacity 150kN.
For JTS series bevel gear screw jacks, available static lifting capacities 25 kN, 50 kN, 100 kN, 150 kN, 200 kN, 250 kN, 350 kN and 500 kN.
Before selecting lifting capacities, please check corresponding models technical parameter table.

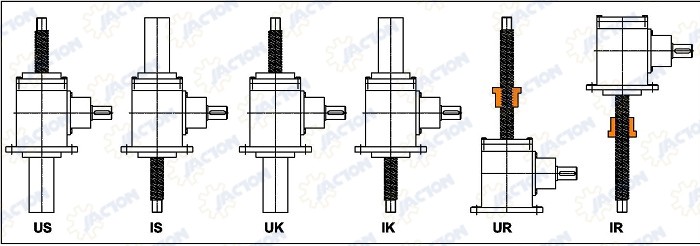

3. Screw Configurations & Mounting Orientation
US:
 Upright translating screw                UK: Upright keyed screw                 UR: Upright rotating screw
IS: Inverted translating screw                 IK: Inverted keyed screw                 IR: Inverted rotating screw
Important Note: The lifting screw of a translating screw jack must be attached to the guided load which prevents the lifting screw from rotating. To add the linear guides, rails or rolls are recommended.
* Important Note: If your application involves a load which is unattached, unguided or the load is free to rotate and not translate, then a keyed anti-rotation screw jack(key and keyway) are required to prevent lifting screw rotation (not recommended).

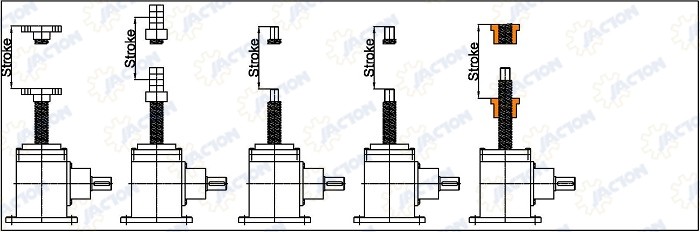

4. Travel Length
600, means exact travel length 600mm. All travel length of JTS series bevel gear screw jacks are customized, the travel length available range from 5mm to 9500mm.



5. Bevel Gear Ratio
There are two bevel gear ratios(not worm gear ratio) for every JTS series bevel gear screw jacks models. please check corresponding models technical parameter table
They are H: high speed 1:1 ratio and L: slow speed 2:1 ratio

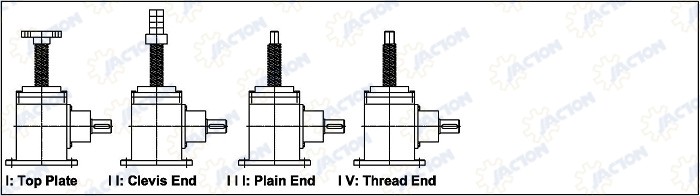

6. Lifting Screw End Fittings
All JTS series bevel gear screw jacks models lifting screw end fittings includes top plate (I), clevis end (II), plain end(III) and threaded end (IV). Custom made spherical hinge, forked head etc. If special lifting screw end fitting needed, please send us the end fitting drawings, we will process them following the drawings.



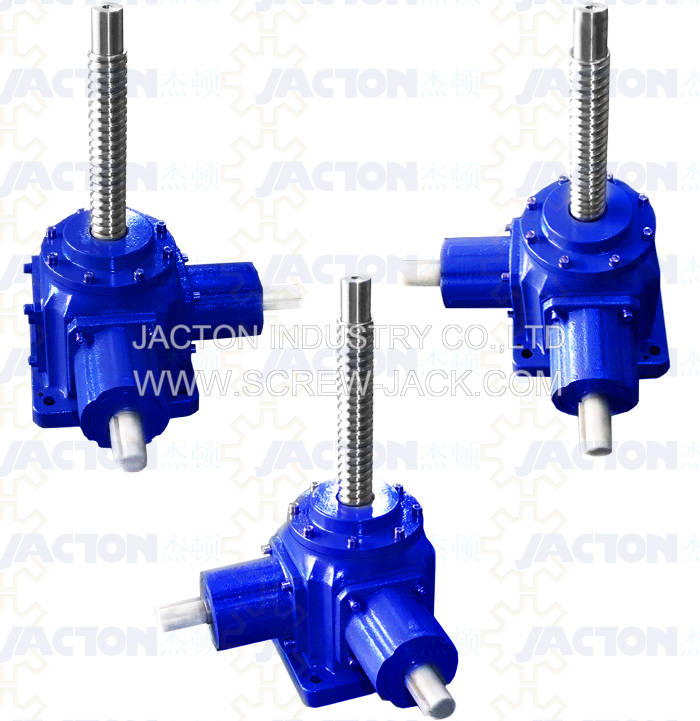

7. Input Shaft Types

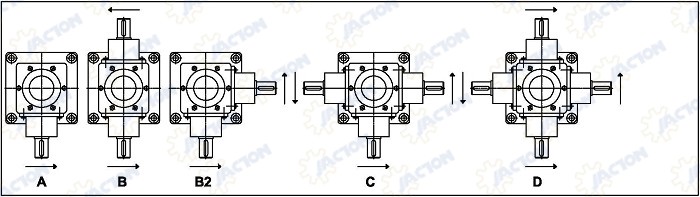

A:
Single input shaft.
B: Inline pair input shafts.
B2: 90 degree right angle pair input shafts.
C: Three input shafts (T type).
D: Four input shafts(Cross type).



8. Accessories
JTS series bevel gear jacks with a comprehensive range of accessories like FC=Flex couplings, UJ=Universal joints, TUJ=Telescopic universal joints, CS=Connecting shafts, HW=Hand wheels, PB=Pillow blocks, FB=Flange blocks, RE=Rod ends, LSB=Linear shafts and bearings, LGB=Linear guides and bearings, TSC=Telescopic spring covers, BB=Bellows boot, PP=Protection tubes, TAP=Trunnion adapter plates, TMB=Trunnion mounting brackets, MF=Motor flanges, WGR=Worm gear speed reducers, HGR=Helical gear reducers, EM=Single phase or three phase induction motors, STM=Stepper motors, SEM=Servo motors, DCGM=DC geared motors, REN=Rotary encoders, LS=Travel limit switches, FIN=Frequency inverters, PIN=Position indicators, SN=Stop nuts, TN=Travel nuts, SNU=Safety nuts.
