THE NAME:
JTV260 Miter Gearbox - Stop Production
Model: JTV260-Mitergearbox-1To1-5To1
Categories: JCA Cubic Electric Cylinder »
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:
JTV260 Miter Gearbox Picture
JTV260 Miter Gearbox Descriptions
1. Cubic, all-round machined symmetrical housing, Gear ratios 1:1.
2. Configuration available input and output solid shaft.
3. 60mm diameter drive shafts. Shafts arrangements available 2 way, 2 way reverse, 3 way, 3 way reverse, 4 way. Shafts can be rotated in both clockwise and counter-clockwise rotation direction. Mounting position available horizontal mount, over hung mount and wall mount.
4. Max. allowable torque 1841 n.m, max. allowable power 157 kw, max. allowable speed 1500 rpm.
5. Low backlash, quiet low noise, low running temperature.

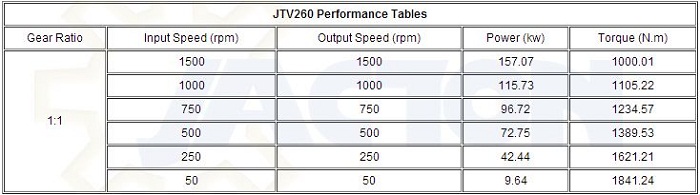

JTV260 Miter Gearbox Specifications
JTV260 Miter Gearbox Dimensional Drawing
JTV260 Miter Gearbox Ordering Information
JTV – 260 – 1:1 – 1500R – 1500R – C – B3
1 2 3 4 5 6 7
1. Gearbox Series
JT: "Jacton" brand
V: V series miter gearbox
2. Model
260: Cubic body sizes 260x260x260mm
Before selecting JTV260, please check above JTV260 Miter Gearbox Specifications
3. Gear Ratio
* Gear ratios such as 1:1.
4 & 5. Input & Output RPM
* 1:1 ratio, input speed = output speed.
For example, input speed 1500 rpm
* 1:1 ratio, output speed 1500 rpm.
6. Shaft Arrangements And Direction Of Shaft Rotating
Drive shafts can be rotated in both clockwise and counter-clockwise rotation directions.
* A: three way shafts, input shaft CW, both sides output shafts CW.
* B: three way shafts, input shaft CW, both sides output shafts CCW.
* C: two way shafts, input shaft CW, right side output shaft CW.
* D: two way shafts, input shaft CW, right side output shaft CCW.
* E: two way shafts, input shaft CW, left side output shaft CW.
* F: two way shafts, input shaft CW, left side output shaft CCW.
* G: four way shafts, input shaft CW, inline input shaft CCW, both sides output shaft CW.
* H: four way shafts, input shaft CW, inline input shaft CCW, both sides output shaft CCW.
* J: three way shafts, input shaft CW, inline input shaft CCW, right side output shaft CW.
* K: three way shafts, input shaft CW, inline input shaft CCW, right side output shaft CCW.
* L: three way shafts, input shaft CW, inline input shaft CCW, left side output shaft CW.
* M: three way shafts, input shaft CW, inline input shaft CCW, left side output shaft CCW.

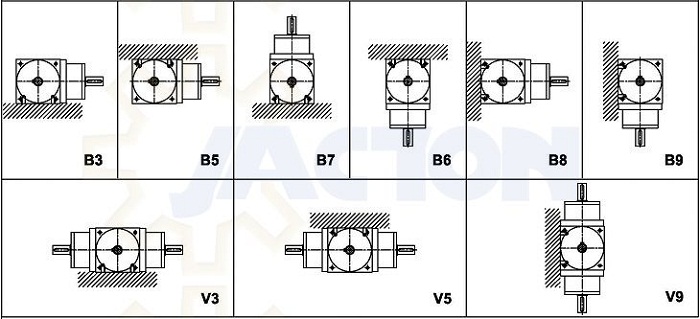

7. Mounting Position
* Horizontal mount codes: B3, B7, V3
* Over hung mount codes: B5, B6, V5
* Wall mount codes: B8, B9, V9
JTV260 Miter Gearbox Applications
JTV260 miter gearbox is widely applied in grain bin auger, tiller, fans, hay baler, tub grinder, grain dryer, power rake, rock picker, food handling, stereo garage, amusement, packer, textile machine, food processing machine, diese engine drive water pump, rotary axis drive, vertical turbine water pump, lifting gear, crane installation, rolling mill, cable installation, conveyor drive and stranding machinery. Whatever your goal is to blend, blow, bottle, crank, cut, convey or the task is to press, propel or raise, JTV260 miter gearbox is welcomed and ideal power transmission solution with all these industries.
JTV260 Miter Gearbox Descriptions
1. Cubic, all-round machined symmetrical housing, Gear ratios 1:1.
2. Configuration available input and output solid shaft.
3. 60mm diameter drive shafts. Shafts arrangements available 2 way, 2 way reverse, 3 way, 3 way reverse, 4 way. Shafts can be rotated in both clockwise and counter-clockwise rotation direction. Mounting position available horizontal mount, over hung mount and wall mount.
4. Max. allowable torque 1841 n.m, max. allowable power 157 kw, max. allowable speed 1500 rpm.
5. Low backlash, quiet low noise, low running temperature.
JTV260 Miter Gearbox Specifications
JTV260 Miter Gearbox Dimensional Drawing
JTV260 Miter Gearbox Ordering Information
JTV – 260 – 1:1 – 1500R – 1500R – C – B3
1 2 3 4 5 6 7
1. Gearbox Series
JT: "Jacton" brand
V: V series miter gearbox
2. Model
260: Cubic body sizes 260x260x260mm
Before selecting JTV260, please check above JTV260 Miter Gearbox Specifications
3. Gear Ratio
* Gear ratios such as 1:1.
4 & 5. Input & Output RPM
* 1:1 ratio, input speed = output speed.
For example, input speed 1500 rpm
* 1:1 ratio, output speed 1500 rpm.
6. Shaft Arrangements And Direction Of Shaft Rotating
Drive shafts can be rotated in both clockwise and counter-clockwise rotation directions.
* A: three way shafts, input shaft CW, both sides output shafts CW.
* B: three way shafts, input shaft CW, both sides output shafts CCW.
* C: two way shafts, input shaft CW, right side output shaft CW.
* D: two way shafts, input shaft CW, right side output shaft CCW.
* E: two way shafts, input shaft CW, left side output shaft CW.
* F: two way shafts, input shaft CW, left side output shaft CCW.
* G: four way shafts, input shaft CW, inline input shaft CCW, both sides output shaft CW.
* H: four way shafts, input shaft CW, inline input shaft CCW, both sides output shaft CCW.
* J: three way shafts, input shaft CW, inline input shaft CCW, right side output shaft CW.
* K: three way shafts, input shaft CW, inline input shaft CCW, right side output shaft CCW.
* L: three way shafts, input shaft CW, inline input shaft CCW, left side output shaft CW.
* M: three way shafts, input shaft CW, inline input shaft CCW, left side output shaft CCW.
7. Mounting Position
* Horizontal mount codes: B3, B7, V3
* Over hung mount codes: B5, B6, V5
* Wall mount codes: B8, B9, V9
JTV260 Miter Gearbox Applications
JTV260 miter gearbox is widely applied in grain bin auger, tiller, fans, hay baler, tub grinder, grain dryer, power rake, rock picker, food handling, stereo garage, amusement, packer, textile machine, food processing machine, diese engine drive water pump, rotary axis drive, vertical turbine water pump, lifting gear, crane installation, rolling mill, cable installation, conveyor drive and stranding machinery. Whatever your goal is to blend, blow, bottle, crank, cut, convey or the task is to press, propel or raise, JTV260 miter gearbox is welcomed and ideal power transmission solution with all these industries.
