Linear actuators are a type of actuator that convert rotational motion in motors into linear or straight push/pull movement. Linear actuators are ideal for all types of applications where tilting, lifting, pulling or pushing with pounds of force are required. Electric linear actuators are often the preferred solution when you need simple, safe and clean movement with accurate precision and smooth motion control.
1000KG Parallel Mount Industrial Linear Actuators Acme Screw Electric Actuators with Long Strokes to Replace Fluid-Power Cylinders. 1000KG Parallel Mount Industrial Linear Actuators can not only match the load capacity of hydraulic cylinders and exceed the load capacity of conventional electric linear actuators. Main application in coiling machines, decoiling machines, continuous operation process lines, tundish cars, scissor lifts, lifting platforms, robotics, continuous paint pumps, medical beds, gates, dampers, oven and processing tank doors, antennas, and agricultural equipment.

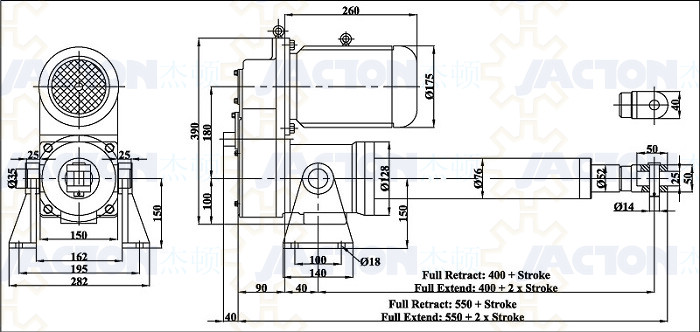

1000KG Parallel Mount Industrial Linear Actuators Acme Screw Technical Details & Drawings


Trunnion Mounting Feet Drawings


1000KG Parallel Mount Industrial Linear Actuators Acme Screw Internal Structure
1. Motor | 2. Gear (1st) | 3. Gearbox | 4. Gear (2nd) |
5. Gear (3rd) | 6. Handwheel | 7. Gear (4th) | 8. ACME screw |
9. Base | 10. Pull rod | 11. Safety switches | 12. Disc spring |
13. Screw nut | 14. Guide rail | 15. Guide bush | 16. Cylinder, 17. Rod end fork |
1000KG Parallel Mount Industrial Linear Actuators Acme Screw are application in gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor lifts, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines opening and closing, tilting and pivoting, lifting and lowering, and positioning etc. Custom designs linear cylinders are also available for your special applications.
