JTW-50T Machine Screw Jack

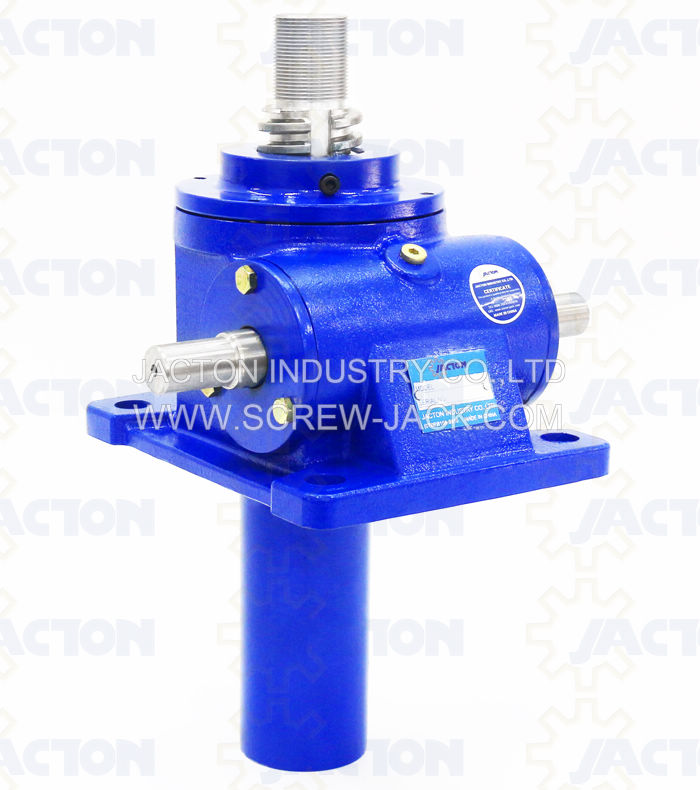

JTW-50T Machine Screw Jack Pictures


JTW-50T Machine Screw Jack Features
1. Maximum load capacity 50 ton, maximum torque 848 Nm.
2. Lift screw diameter 120 mm, pitch 20 mm. Gearbox sizes 475x500x280mm. Center height 121mm, center distance 135mm. Worm shaft diameter 38mm.
3. 32:3, 32:1 gear ratios
4. Translating screw, rotating screw with aluminum bronze traveling nut, non-rotation keyed screw configurations in upright or inverted mounting orientation.
5. Precisely positioning, self-locking acme screw which supports the loads and hold position with no need to employ brake mechanism or other locking systems.

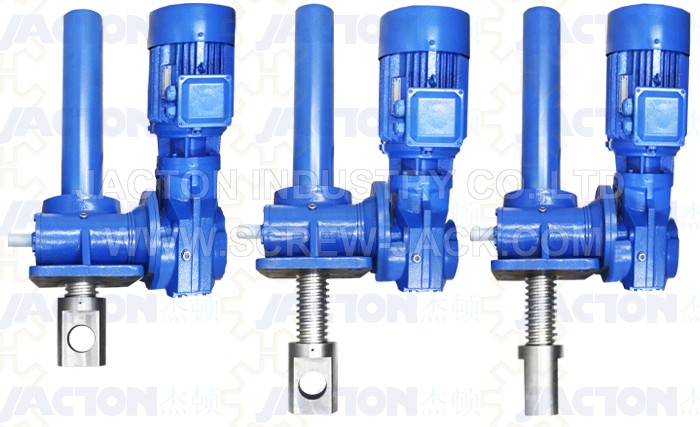

6. Manual machine screw jack by hand wheel or hand crank, electrical drive machine screw jack by electric motor or gearmotor driven, or both.
7. 3-phase or single phase motor driven with 1500 rpm input, standard lifting speed 2813 mm/min and 938 mm/min.
8. Top plate (I), clevis end (II), plain end(III) and threaded end (IV) are available. Custom made spherical hinge, forked head.
9. Individually or multiple jtw-50t machine screw jack lift system arrangements are available.

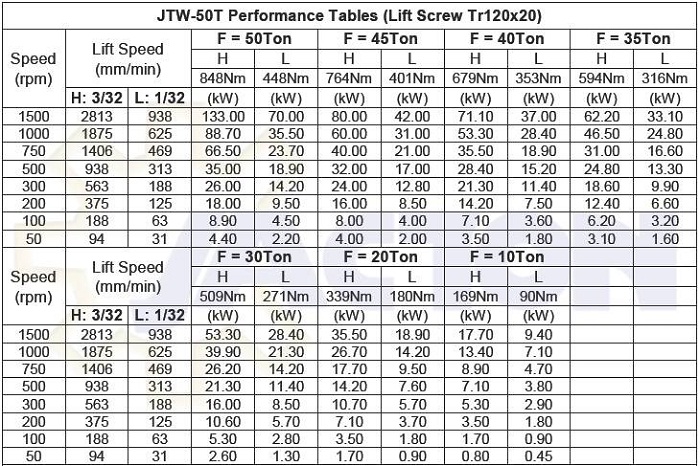

JTW-50T Machine Screw Jack Specifications
* Note: The dark gray figures in the tables indicates operational restrictions due to thermal limits. Static only (dynamic not permitted). Selection of screw jacks using these figures should only be carried out in consultation with our engineers. When your selection is made within the areas dark gray, you will need to reduce duty cycle or choose larger model screw jacks in order to allow effective heat dissipation.
* Conditions: Duty cycle 20%/h or 30%/10min, 20 °C ambient temperature.
* Gear Ratios: H: high ratio, L: slow ratio.
* Nm: Input torque required, kW: Input power required.

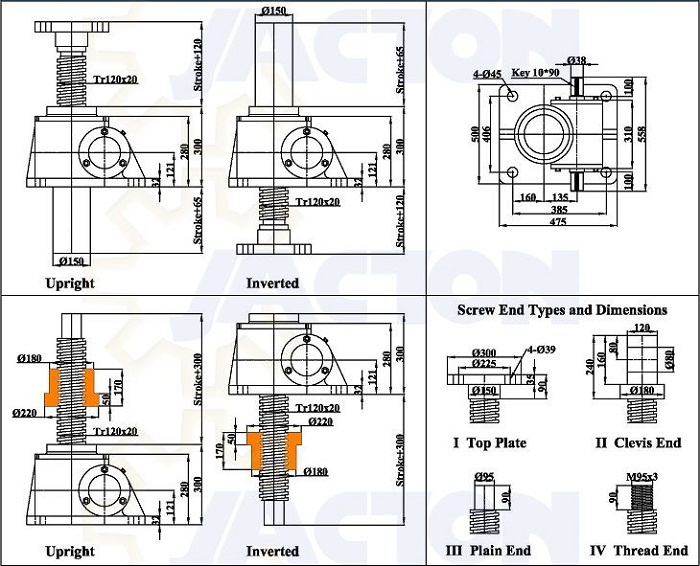

JTW-50T Machine Screw Jack Dimensional Drawing
About 2D Autocad dwg, dxf assembly drawings, and 3D stp, step, model, igs, prt or catpart assembly drawings, please contact Jacton Industry directly.

Dimensions are subject to change without notice
