THE NAME:

1600KG Parallel Electro-mechanical Actuators Heavy Duty

Model: LAP1600
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:
A linear actuator is a device or machine that converts rotational motion into linear motion and linear movement (in a straight line). This can be done through electric AC and DC motors, or the movement can be powered by hydraulics and pneumatics. Electric linear actuators are a preferred option when precise and clean movement is needed. They are used for all types of applications where tilting, lifting, pulling or pushing with force is needed.

1600KG Parallel Electro-mechanical Actuators Heavy Duty Electric Actuators Vs. Pneumatic Cylinders. 1600KG Parallel Electro-mechanical Actuators Heavy Duty are consist of electric motor or brake motor, acme lead screw, helical spur gearbox, thrust bearing housing, tapered roller thrust bearings, outer casing, screw support bearing, bearing support, wiper seal, inner ram, and clevis End. The acme lead screw converts rotary motion to linear movement. As the screw rotates, the nut extends and retracts the ram, which is attached to the load. 1600KG Parallel Electro-mechanical Actuators Heavy Duty are used for opening and closing, tilting and pivoting, lifting and lowering and positioning. For example gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines. Custom designs are also available for special applications.


1600KG Parallel Electro-mechanical Actuators Heavy Duty Technical Details & Drawings

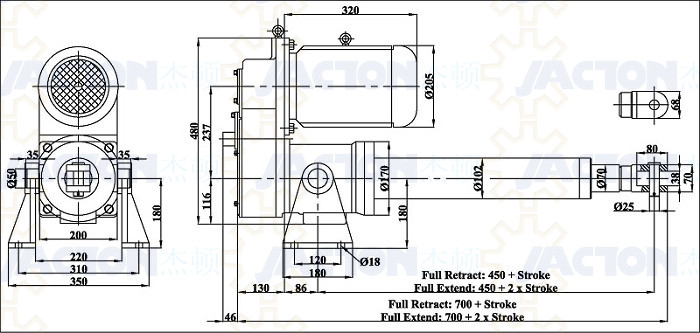

Trunnion Mounting Feet Drawings



1600KG Parallel Electro-mechanical Actuators Heavy Duty Internal Structure

1. Motor2. Gear (1st)3. Gearbox4. Gear (2nd)
5. Gear (3rd)6. Handwheel7. Gear (4th)8. ACME screw
9. Base10. Pull rod11. Safety switches12. Disc spring
13. Screw nut14. Guide rail 15. Guide bush16. Cylinder, 17. Rod end fork

1600KG Parallel Electro-mechanical Actuators Heavy Duty are application in gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor lifts, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines opening and closing, tilting and pivoting, lifting and lowering, and positioning etc. Custom designs linear cylinders are also available for your special applications.
