THE NAME:

20000KG Parallel Indistrial Motor Drive Linear Actuator

Model: LAP20000
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:
20000KG Parallel Indistrial Motor Drive Linear Actuator Descriptions
20000KG Parallel Indistrial Motor Drive Linear Actuator, Rod Style Screw-Driven Electric Linear Actuators Replacing Hydraulic Systems and Pneumatic Cylinders. 20000KG Parallel Indistrial Motor Drive Linear Actuator features include heavy load capacity, high linear speed, long service life, low noise system, no oil leaks, contamination or fire risk, accurate and repeatable positioning using simplified system, easy synchronization, easy installation, no pipework, powerpack and valves, choice of end fittings like clevis, threaded end, top plate, trunnion mounting (with or without feet), proximity switches, guided ram (guiding the load side loads on the actuator ram should be avoided by ensuring that the load is guided), and bellows boots. 20000KG Parallel Indistrial Motor Drive Linear Actuator are used for opening and closing, tilting and pivoting, lifting and lowering and positioning. For example gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines. Custom designs are also available for special applications.


20000KG Parallel Indistrial Motor Drive Linear Actuator Technical Details
1. 20000 Kgf load capacity, 21mm/s (1260mm/min) slow linear speed, with 7.5kw power electric motor.
2. 20000 Kgf load capacity, 42mm/s (2520mm/min) medium linear speed, with 15kw power electric motor.

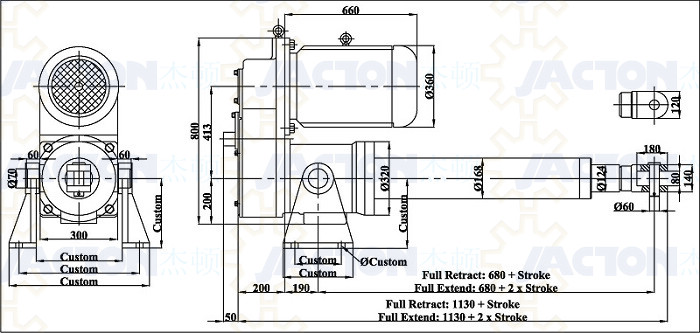

20000KG Parallel Indistrial Motor Drive Linear Actuator Drawings
