JT-20T Acme Screw Jack

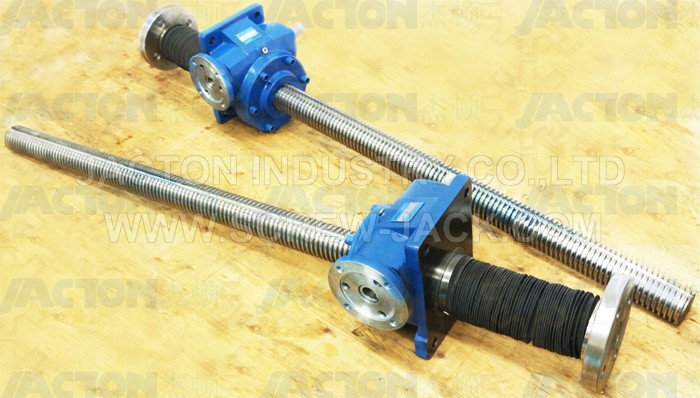

JT-20T Acme Screw Jack Pictures


JT-20T Acme Screw Jack Features
1. Static load capacity maximum 20 ton, dynamic load capacity maximum 8.4 ton.
2. Lift screw diameter 65 mm, pitch 10 mm. Gearbox sizes 255x183x167mm. Center height 70mm, center distance 70mm. Worm shaft diameter 28mm.
3. Three worm gear ratios 1/10, 1/20, 1/40.
4. Translating screw, rotating screw with bronze acme nut, anti rotating keyed screw configurations in upright or inverted mounting orientation.
5. Accurate positioning, self-locking acme screw which supports the loads and hold position with no need to employ brake mechanism or other locking systems.
6. Manually operated screw jack by hand wheel or hand crank, electrically screw jack by electric motor or gearmotor driven, or both.
7. 3-phase or single phase motor driven with 1500 rpm input, standard lifting speed 1500 mm/min, 750 mm/min and 375 mm/min.
8. No standard lift screw stroke, all lift screw travel length is processed according customers requirements. Under max. compression load, without guides, maximum 600 mm stroke, with guides maximum 1200 mm stroke. Under a tension load, maximum 4000 mm stroke.
9. Lift screw end fittings include top plate (I), clevis end (II), plain end(III) and threaded end (IV). Custom made spherical hinge, forked head etc.
10. Individually or multiple jt-20t acme screw jack lift system arrangements are available.
11. Compared with fast speed hydraulic cylinder and pneumatic cylinder, JT-20T acme screw jack is of easy installation, small sizes, easy operation and maintenance, precisely lifting, self-locking, synchronous speed, environmental protection, multiple units arrangements.

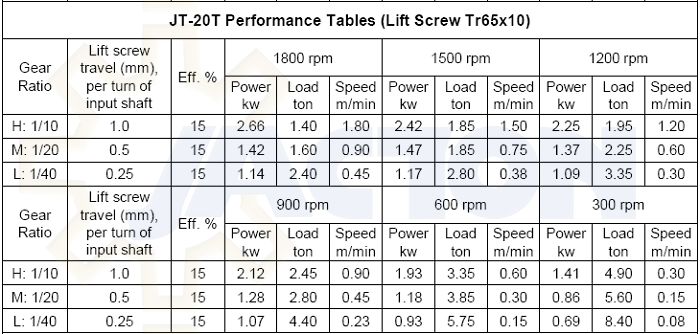

JT-20T Acme Screw Jack Specifications

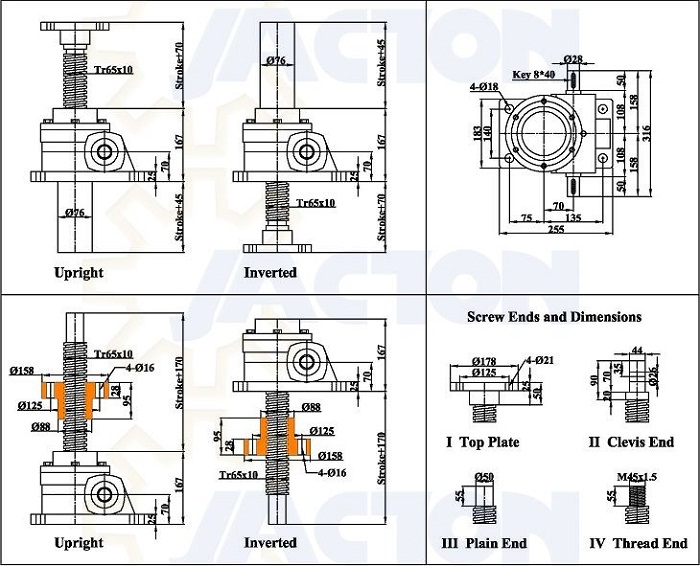

JT-20T Acme Screw Jack Dimensional Drawing
