THE NAME:

100KG In-line Fast Speed Electric Linear Motor Linear Actuator

Model: LA100
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:
The linear actuators generally have a mounting option at the end of the ram and at the gearbox end of the actuator to allow a pivoting movement. There are a number of options, double clevis as standard, or clevis to trunnion. However all have multiple mounting options including clevis, trunnion, fork, top plate, base plate and threaded rod end. Unless otherwise stated back-driving is possible in all electric linear actuators. Actuators that use a ball screw are normally fitted with an electrical brake (typically motor mounted) to prevent the load from back-driving the actuator. Note if a machine screw actuator is considered self-locking, it may still back-drive if significant vibration and cyclic temperature variations are present. ACME screw or trapezoidal screw actuators would be considered to be self-locking.

100KG In-line Fast Speed Electric Linear Motor Linear Actuator, Industrial Linear Actuator Replace The Traditional Pneumatic Cylinders or Hydraulic Cylinder. 100KG In-line Electric Linear Motor Linear Actuator features include heavy load capacity, high linear speed, long service life, low noise system, no oil leaks, contamination or fire risk, accurate and repeatable positioning using simplified system, easy synchronization, easy installation, no pipework, powerpack and valves, choice of end fittings like clevis, threaded end, top plate, trunnion mounting (with or without feet), proximity switches, guided ram (guiding the load side loads on the actuator ram should be avoided by ensuring that the load is guided), and bellows boots. 100KG In-line Electric Linear Motor Linear Actuator can not only match the load capacity of hydraulic cylinders and exceed the load capacity of conventional electric linear actuators. Main application in coiling machines, decoiling machines, continuous operation process lines, tundish cars, scissor lifts, lifting platforms, robotics, continuous paint pumps, medical beds, gates, dampers, oven and processing tank doors, antennas, and agricultural equipment.


100KG In-line Electric Linear Motor Linear Actuator Technical Details & Drawings

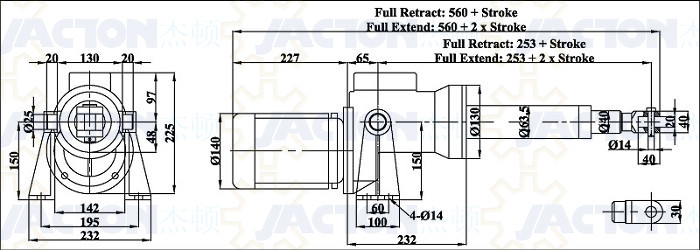

Trunnion Mounting Feet Drawings



100KG In-line Fast Speed Electric Linear Motor Linear Actuators are application in gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor lifts, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines opening and closing, tilting and pivoting, lifting and lowering, and positioning etc. Custom designs linear cylinders are also available for your special applications.
