500KG Parallel Mount Rod Style Linear Actuators

Model: LAP500
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:
Classic vs Premium Actuator: Choosing the right Linear Actuator is not easy when there are so many to choose from, especially as there are so many variations to our high-quality Electric Linear Actuators, such as stroke length, voltages, speed, and force.

500KG Parallel Mount Rod Style Linear Actuators to Replace Hydraulic and Pneumatic Actuators. 500KG Parallel Mount Rod Style Linear Actuators are consist of electric motor or brake motor, acme lead screw, helical spur gearbox, thrust bearing housing, tapered roller thrust bearings, outer casing, screw support bearing, bearing support, wiper seal, inner ram, and clevis End. The acme lead screw converts rotary motion to linear movement. As the screw rotates, the nut extends and retracts the ram, which is attached to the load.

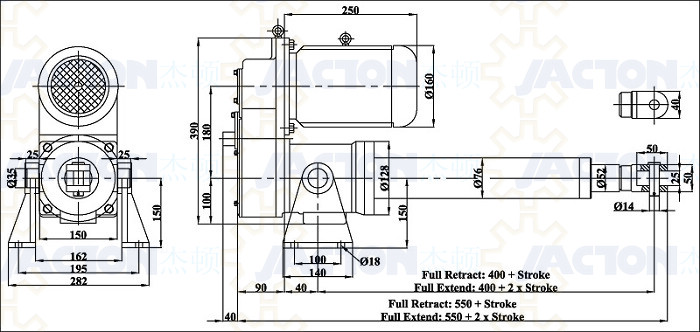

500KG Parallel Mount Rod Style Linear Actuators Technical Details & Drawings



Trunnion Mounting Feet Drawings



500KG Parallel Mount Rod Style Linear Actuators Internal Structure

1. Motor2. Gear (1st)3. Gearbox4. Gear (2nd)
5. Gear (3rd)6. Handwheel7. Gear (4th)8. ACME screw
9. Base10. Pull rod11. Safety switches12. Disc spring
13. Screw nut14. Guide rail 15. Guide bush16. Cylinder, 17. Rod end fork

500KG Parallel Mount Rod Style Linear Actuators are application in gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor lifts, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines opening and closing, tilting and pivoting, lifting and lowering, and positioning etc. Custom designs linear cylinders are also available for your special applications.
