250KG Parallel Electro Mechanical Linear Actuators

Hydraulic Linear Actuators use a variety of liquids as their source of energy, and Pneumatic Linear Actuators operate using compressed air. Electric Linear Actuators are the preferred option when precise smooth movement is needed and are much easier to install and program to fit your project.

250KG Parallel Electro Mechanical Linear Actuators Converting with Hydraulic or Pneumatic Cylinders to Electric Linear Motion. 250KG Parallel Electro Mechanical Linear Actuators can not only match the load capacity of hydraulic cylinders and exceed the load capacity of conventional electric linear actuators. Main application in coiling machines, decoiling machines, continuous operation process lines, tundish cars, scissor lifts, lifting platforms, robotics, continuous paint pumps, medical beds, gates, dampers, oven and processing tank doors, antennas, and agricultural equipment.


250KG Parallel Electro Mechanical Linear Actuators Technical Details & Drawings

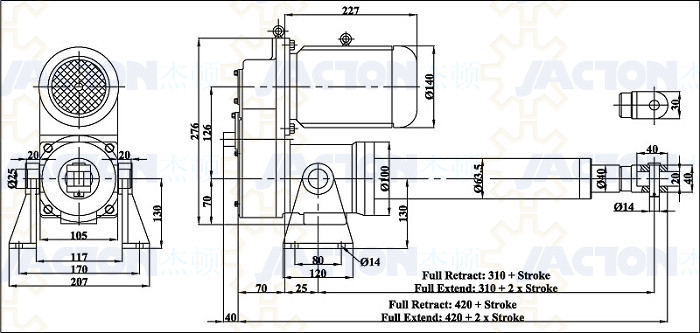

Trunnion Mounting Feet Drawings



250KG Parallel Electro Mechanical Linear Actuators Internal Structure

1. Motor	2. Gear (1st)	3. Gearbox	4. Gear (2nd)
5. Gear (3rd)	6. Handwheel	7. Gear (4th)	8. ACME screw
9. Base	10. Pull rod	11. Safety switches	12. Disc spring
13. Screw nut	14. Guide rail	15. Guide bush	16. Cylinder, 17. Rod end fork

250KG Parallel Electro Mechanical Linear Actuators are application in gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor lifts, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines opening and closing, tilting and pivoting, lifting and lowering, and positioning etc. Custom designs linear cylinders are also available for your special applications.
