90KG In-line High Speed Motor Drive Electric Linear Actuator

Linear actuators move things. Some examples of practical automation applications are: sand, salt, and fertilizer spreader chutes;  throttle control, marine engine hatch, slide out steps, hoppers, hidden doors, solar panels, sliding doors, sliding window treatments, farming implementations and animatronics. Industrial applications include, damper control and height adjustable work stations. The hydraulic actuator uses fluid to push a ram backwards and forwards, where as an electric actuator uses a DC motor to drive a lead screw, the lead screw is fitted with a nut that runs up and down the lead screw converting rotary motion into linear motion.

90KG In-line High Speed Motor Drive Electric Linear Actuator, Electric Rod Actuators (electrical cylinders) Replacing Hydraulic Cylinders with Power Cylinders. 90KG In-line High Speed Motor Drive Electric Linear Actuator features include heavy load capacity, high linear speed, long service life, low noise system, no oil leaks, contamination or fire risk, accurate and repeatable positioning using simplified system, easy synchronization, easy installation, no pipework, powerpack and valves, choice of end fittings like clevis, threaded end, top plate, trunnion mounting (with or without feet), proximity switches, guided ram (guiding the load side loads on the actuator ram should be avoided by ensuring that the load is guided), and bellows boots. 90KG In-line High Speed Motor Drive Electric Linear Actuator can not only match the load capacity of hydraulic cylinders and exceed the load capacity of conventional electric linear actuators. Main application in coiling machines, decoiling machines, continuous operation process lines, tundish cars, scissor lifts, lifting platforms, robotics, continuous paint pumps, medical beds, gates, dampers, oven and processing tank doors, antennas, and agricultural equipment.


90KG In-line High Speed Motor Drive Electric Linear Actuator Technical Details & Drawings

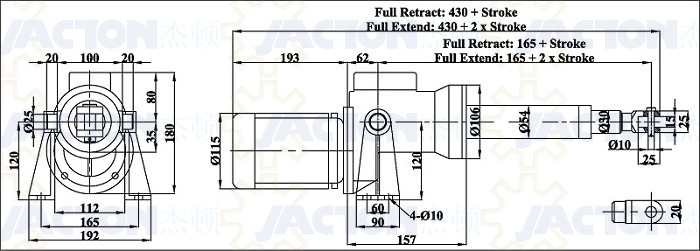

Trunnion Mounting Feet Drawings



90KG In-line High Speed Motor Drive Electric Linear Actuators are application in gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor lifts, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines opening and closing, tilting and pivoting, lifting and lowering, and positioning etc. Custom designs linear cylinders are also available for your special applications.
