JTP170 Miter Gearbox

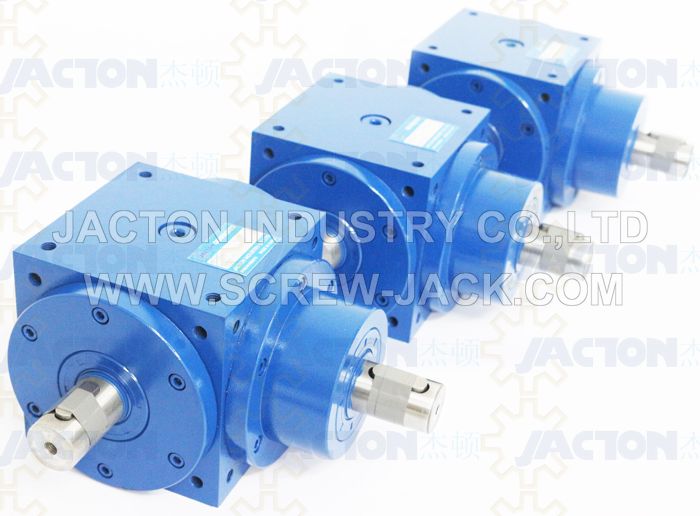

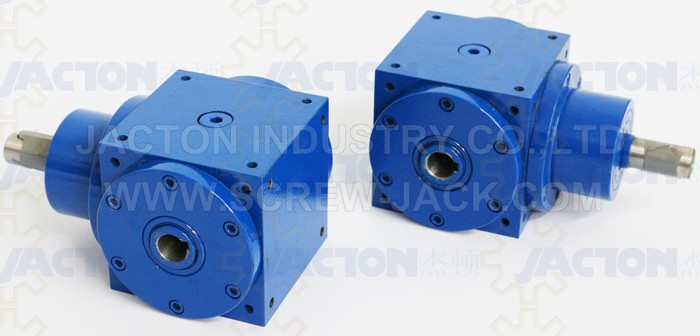

JTP170 Miter Gearbox Pictures



JTP170 Miter Gearbox Descriptions
1. Gear ratios 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
2. Cubic gearbox sizes 170x170x170mm, with all-round tapped holes for universal mounting, 6 possible universal mounting positions, can be easily mounted in any direction.
3. Configuration available input and output solid shaft, input solid shaft with output hollow shaft, input IEC flange with output solid shaft, input IEC flange with output hollow shaft. For hollow shaft and IEC flange, please consult us.
4. 40mm diameter drive shafts. Shafts arrangements available 2 way, 2 way reverse, 3 way, 3 way reverse, 4 way. Shafts can be rotated in both clockwise and counter-clockwise rotation direction. Mounting position available horizontal mount, over hung mount and wall mount.
5. Max. allowable torque 290.3 n.m, max. allowable power 39.2 kw, max. allowable speed 1500 rpm.
6. Low backlash, quiet low noise, low running temperature.

JTP170 Miter Gearbox Structures and Materials
Structures: gearbox housings, one pair or one pair and a half spiral bevel gears, input shafts, output shafts, bearings, sealings, shafts covers etc.
Spiral Bevel Gears
1. High purity rugged alloy steel 20CrMnTiH material
2. Carburizing process, case hardened and lapped in pairs for intersecting shafts
3. Low noise with grinded spiral teeth, high torque with milled teeth, high rigidity and wear risistance
Input Shafts and Output Shafts
1. Hardened and tempered alloy steel 40Cr material, hanging heavy load capacity With key and keyway
2. Customized stainless steel, chromium coated or other corrosion resistance painting.
3. Customized spline shaft,shaft without key and keyway
Gearbox Housings
1. High rigidity cast iron
2. Customized stainless steel, galvanic coating or other corrosion resistance painting
Bearings
1. Heavy duty tapered roller bearing
2. Customized reinforced bearings for higher radial and axial load
Oil Seals
1. Double lip oil seal
2. Prevent gear oil leak and dustproof

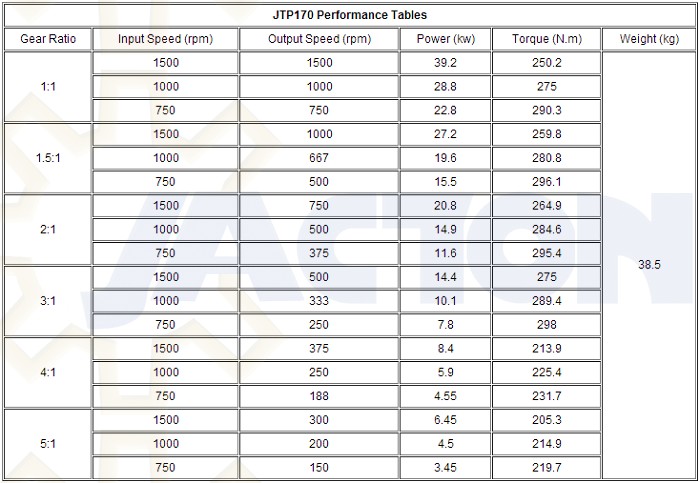

JTP170 Miter Gearbox Specifications

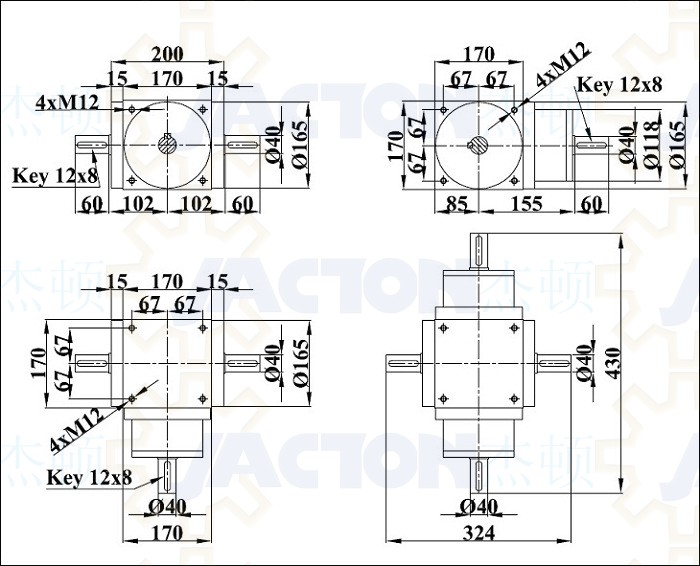

JTP170 Miter Gearbox Solid Shaft Input and Output Dimensions
Note 1: below drawing dimensions for standard soild input and output shaft with 1:1, 1.5:1 and 2:1 ratios. If other ratios such as 3:1 ratio with 32mm dia. input shaft & 40mm dia. output shaft, 4:1 ratio with 26mm dia. input shaft & 40mm dia. output shaft, 5:1 ratio with 22mm dia. input shaft & 40mm dia. output shaft.
Note 2: Custom made solid input shaft and output hollow shaft (hollow shaft diameter max. 38mm).
Note 3: Custom made input IEC flange with solid output shaft, suitable IEC motor flange include IEC 80B5, 90B5, 100B5, 112B5, 132B5, 160B5, also customized other motor flange sizes.
Note 4: Custom made input IEC flange with output hollow shaft (hollow shaft diameter max. 38mm), suitable IEC motor flange include IEC 80B5, 90B5, 100B5, 112B5, 132B5, 160B5, also customized other motor flange sizes.


JTP170 Miter Gearbox Ordering Information

JTP  –  170  –  1:1  –  1500R  –  1500R  –  C  –  B3
   1           2          3             4                5            6        7

1. Gearbox Series
JT: "Jacton" brand
P: P series miter gearbox
Standard soild input and output shaft, no need mark in model

2. Model
170: Cubic gearbox sizes 170x170x170mm
Before selecting JTP170, please check above JTP170 Miter Gearbox Specifications

3. Gear Ratio
* Gear ratios such as 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
* Reducer: If ratio is not 1:1, if input speed on input shaft, output speed will be reduced.
* Increaser: If input speed on the output shaft, but input shaft as the output shaft, the output speed will be increased.


4 & 5. Input & Output RPM


6. Shaft Arrangements And Direction Of Shaft Rotating
Drive shafts can be rotated in both clockwise and counter-clockwise rotation directions.
* A: three way shafts, input shaft CW, both sides output shafts CW.
* B: three way shafts, input shaft CW, both sides output shafts CCW.
* C: two way shafts, input shaft CW, right side output shaft CW.
* D: two way shafts, input shaft CW, right side output shaft CCW.
* E: two way shafts, input shaft CW, left side output shaft CW.
* F: two way shafts, input shaft CW, left side output shaft CCW.
* G: four way shafts, input shaft CW, inline input shaft CCW, both sides output shaft CW.
* H: four way shafts, input shaft CW, inline input shaft CCW, both sides output shaft CCW.
* J: three way shafts, input shaft CW, inline input shaft CCW, right side output shaft CW.
* K: three way shafts, input shaft CW, inline input shaft CCW, right side output shaft CCW.
* L: three way shafts, input shaft CW, inline input shaft CCW, left side output shaft CW.
* M: three way shafts, input shaft CW, inline input shaft CCW, left side output shaft CCW.


7. Mounting Position
* Horizontal mount codes: B3, B7, V3, V6
* Over hung mount codes: B5, B6, V5, V8
* Wall mount codes: B8, B9, V7, V9
