JT-100T Acme Screw Jack

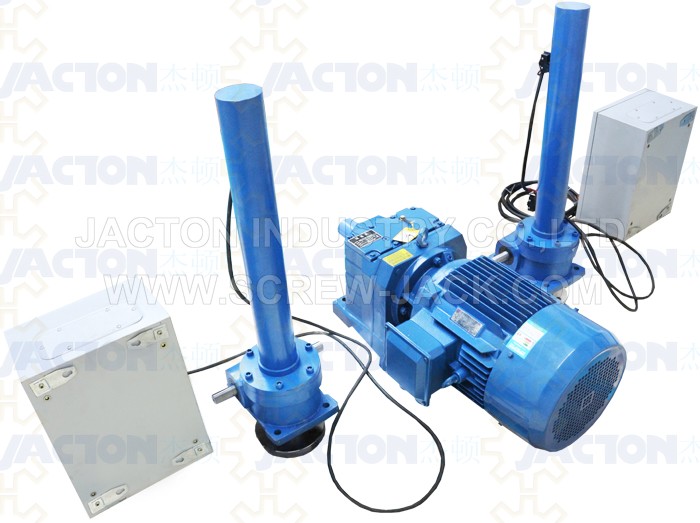

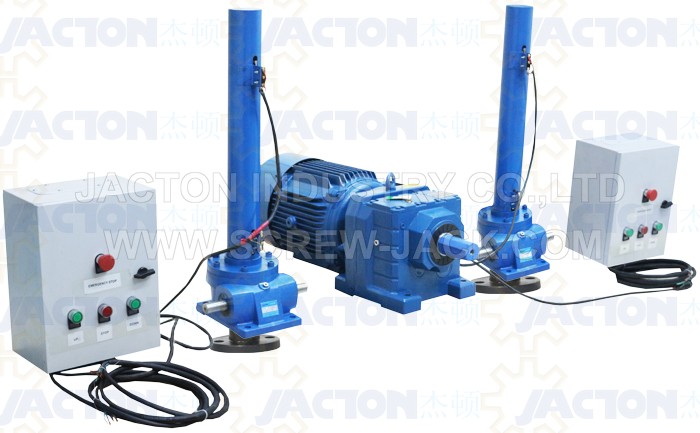

JT-100T Acme Screw Jack Pictures


JT-100T Acme Screw Jack Features
1. Static load capacity maximum 100 ton, dynamic load capacity maximum 26 ton.
2. Lift screw diameter 100 mm, pitch 16 mm. Gearbox sizes 455x320x345mm. Center height 125mm, center distance 150mm. Worm shaft diameter 50mm.
3. Three worm gear ratios 1/8, 1/16, 1/32.
4. Translating screw, rotating screw with bronze acme nut, anti rotating keyed screw configurations in upright or inverted mounting orientation.
5. Accurate positioning, self-locking acme screw which supports the loads and hold position with no need to employ brake mechanism or other locking systems.
6. Manually operated screw jack by hand wheel or hand crank, electrically screw jack by electric motor or gearmotor driven, or both.
7. 3-phase or single phase motor driven with 1500 rpm input, standard lifting speed 3000 mm/min, 1500 mm/min and 750 mm/min.
8. No standard lift screw stroke, all lift screw travel length is processed according customers requirements. Under max. compression load, without guides, maximum 900 mm stroke, with guides maximum 1800 mm stroke. Under a tension load, maximum 4500 mm stroke.
9. Lift screw end fittings include top plate (I), clevis end (II), plain end(III) and threaded end (IV). Custom made spherical hinge, forked head etc.
10. Individually or multiple jt-100t acme screw jack lift system arrangements are available.
11. Compared with fast speed hydraulic cylinder and pneumatic cylinder, JT-100T acme screw jack is of easy installation, small sizes, easy operation and maintenance, precisely lifting, self-locking, synchronous speed, environmental protection, multiple units arrangements.

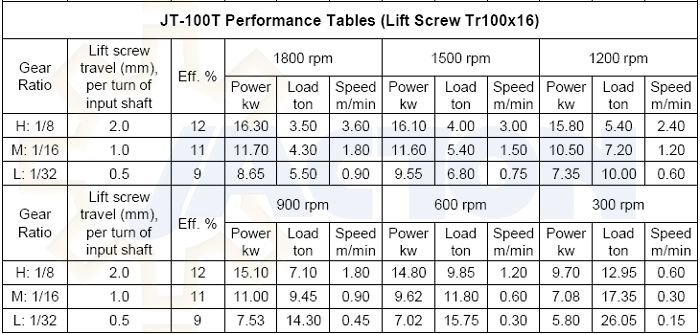

JT-100T Acme Screw Jack Specifications

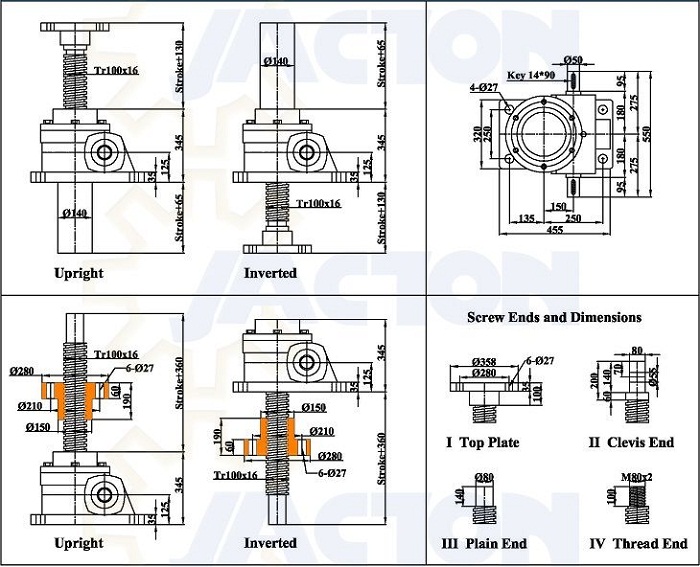

JT-100T Acme Screw Jack Dimensional Drawing
