THE NAME:

JT-10T Acme Screw Jack

Model: JT-10Ton-Acmescrewjack-Tr46x8
Categories: JT Acme Screw Jack »
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:

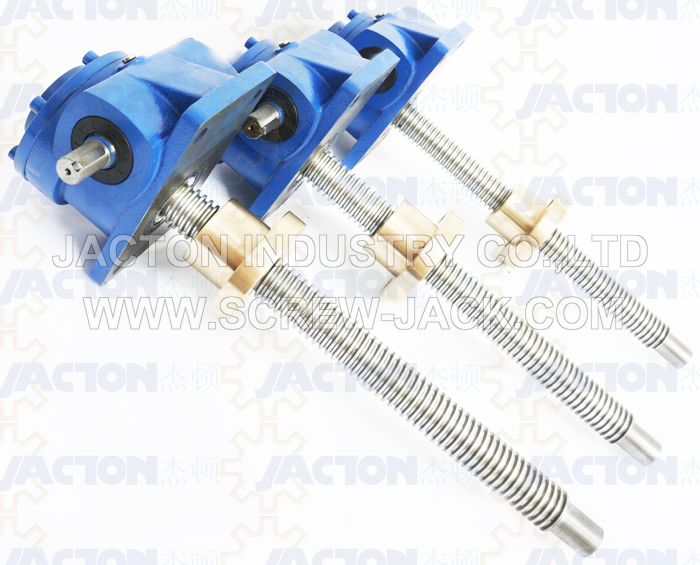

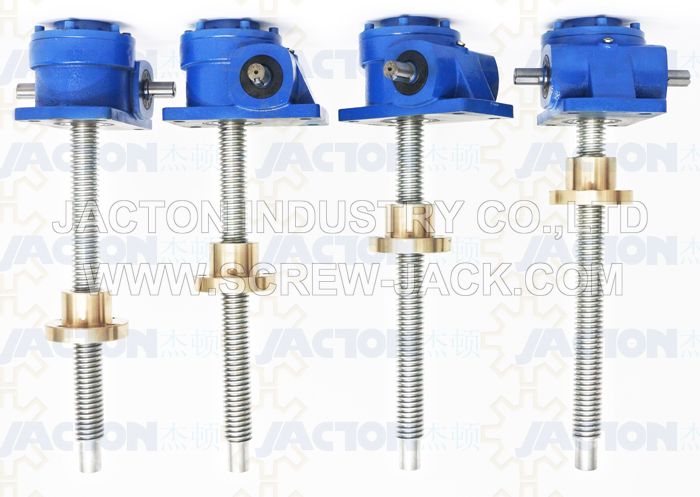

JT-10T Acme Screw Jack Pictures


JT-10T Acme Screw Jack Features
1. Static load capacity maximum 10 ton, dynamic load capacity maximum 6.4 ton.
2. Lift screw diameter 46 mm, pitch 8 mm. Gearbox sizes 233x142x152mm. Center height 60mm, center distance 60mm. Worm shaft diameter 25mm.
3. Three worm gear ratios 1/8,1/16,1/32.
4. Translating screw, rotating screw with bronze acme nut, anti rotating keyed screw configurations in upright or inverted mounting orientation.
5. Accurate positioning, self-locking acme screw which supports the loads and hold position with no need to employ brake mechanism or other locking systems.
6. Manually operated screw jack by hand wheel or hand crank, electrically screw jack by electric motor or gearmotor driven, or both.
7. 3-phase or single phase motor driven with 1500 rpm input, standard lifting speed 1500 mm/min, 750 mm/min and 375 mm/min.
8. No standard lift screw stroke, all lift screw travel length is processed according customers requirements. Under max. compression load, without guides, maximum 400 mm stroke, with guides maximum 800 mm stroke. Under a tension load, maximum 2500 mm stroke.
9. Lift screw end fittings include top plate (I), clevis end (II), plain end(III) and threaded end (IV). Custom made spherical hinge, forked head etc.
10. Individually or multiple jt-10t acme screw jack lift system arrangements are available.
11. Compared with fast speed hydraulic cylinder and pneumatic cylinder, JT-10T acme screw jack is of easy installation, small sizes, easy operation and maintenance, precisely lifting, self-locking, synchronous speed, environmental protection, multiple units arrangements.

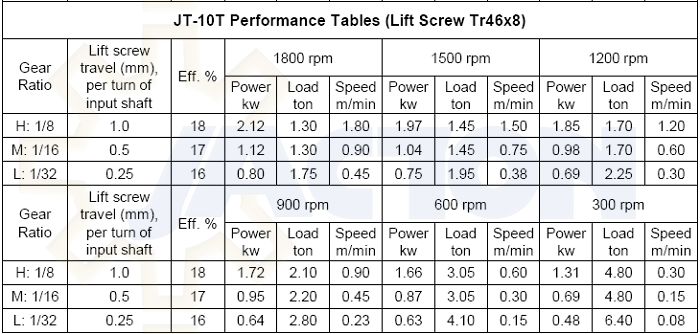

JT-10T Acme Screw Jack Specifications

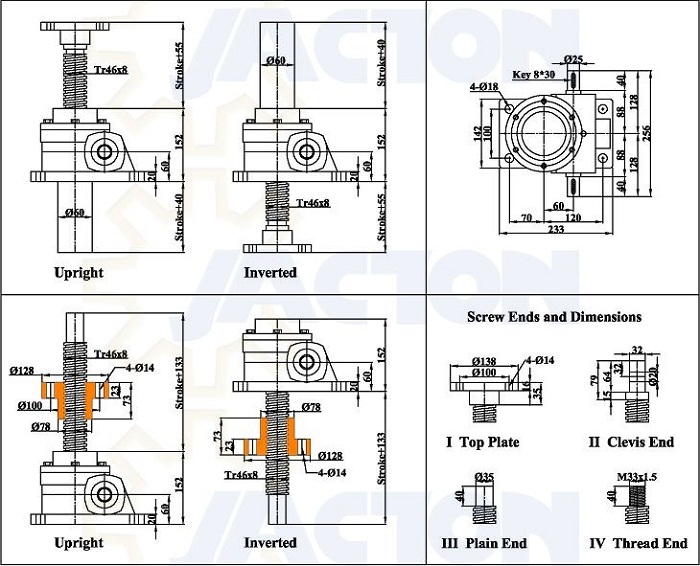

JT-10T Acme Screw Jack Dimensional Drawing
