2500KG Parallel Mount Electric Cylinders Actuator

Quality heavy duty industrial actuators for high-force applications. Our heavy duty 380V AC linear actuators have an 12-Month Warranty. Heavy duty electric rod actuator ideal for applications requiring high force performance in tough environments.

2500KG Parallel Mount Electric Cylinders Actuator Replacement for Hydraulic Cylinders. 2500KG Parallel Mount Electric Cylinders Actuator features include heavy load capacity, high linear speed, long service life, low noise system, no oil leaks, contamination or fire risk, accurate and repeatable positioning using simplified system, easy synchronization, easy installation, no pipework, powerpack and valves, choice of end fittings like clevis, threaded end, top plate, trunnion mounting (with or without feet), proximity switches, guided ram (guiding the load side loads on the actuator ram should be avoided by ensuring that the load is guided), and bellows boots. 2500KG Parallel Mount Electric Cylinders Actuator are used for opening and closing, tilting and pivoting, lifting and lowering and positioning. For example gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines. Custom designs are also available for special applications.


2500KG Parallel Mount Electric Cylinders Actuator Technical Details & Drawings

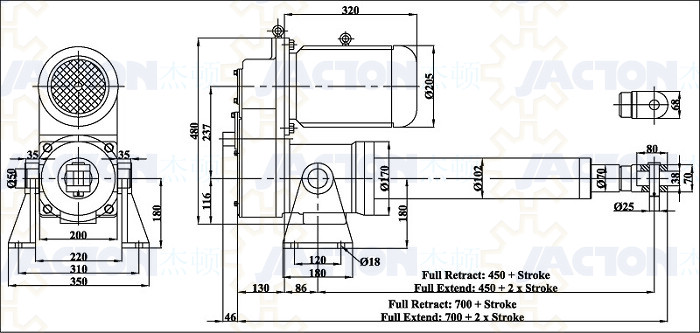

Trunnion Mounting Feet Drawings



2500KG Parallel Mount Electric Cylinders Actuator Internal Structure

1. Motor	2. Gear (1st)	3. Gearbox	4. Gear (2nd)
5. Gear (3rd)	6. Handwheel	7. Gear (4th)	8. ACME screw
9. Base	10. Pull rod	11. Safety switches	12. Disc spring
13. Screw nut	14. Guide rail	15. Guide bush	16. Cylinder, 17. Rod end fork

2500KG Parallel Mount Electric Cylinders Actuator are application in gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor lifts, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines opening and closing, tilting and pivoting, lifting and lowering, and positioning etc. Custom designs linear cylinders are also available for your special applications.
