JTP110 Miter Gearbox

Model: JTP110-Mitergearbox-1To1-5To1
Categories: JTP Miter Gearbox »
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:

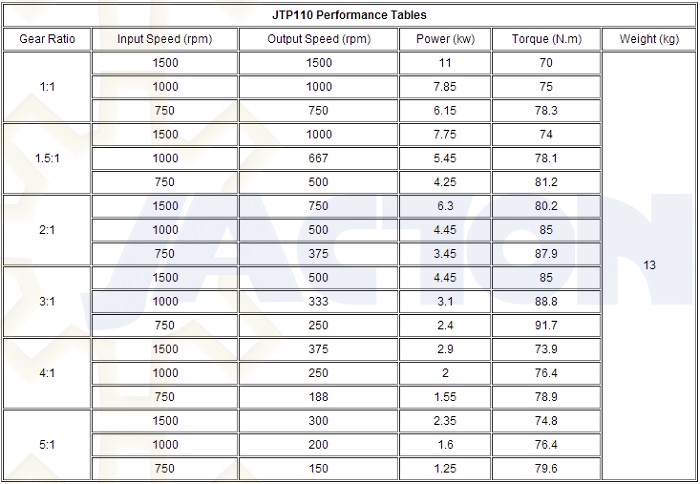

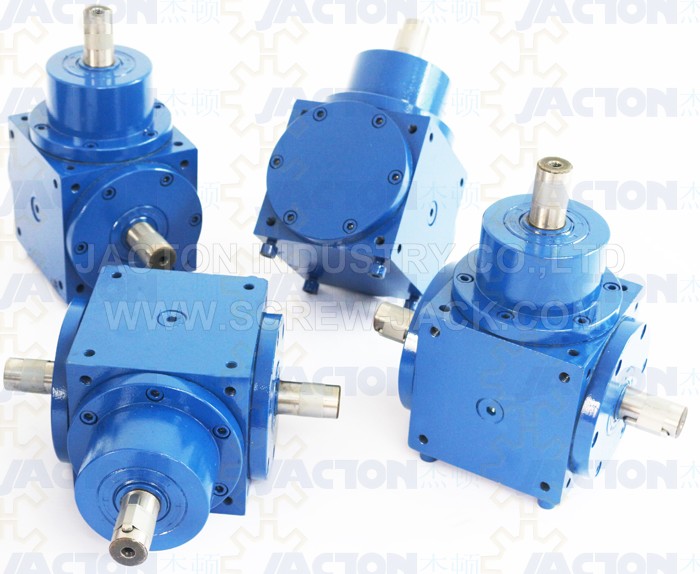

JTP110 Miter Gearbox Pictures


JTP110 Miter Gearbox Descriptions
1. Gear ratios 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
2. Cubic gearbox sizes 110x110x110mm, with all-round tapped holes for universal mounting, 6 possible universal mounting positions, can be easily mounted in any direction.
3. Configuration available input and output solid shaft, input solid shaft with output hollow shaft, input IEC flange with output solid shaft, input IEC flange with output hollow shaft. For hollow shaft and IEC flange, please consult us.
4. 22mm diameter drive shafts. Shafts arrangements available 2 way, 2 way reverse, 3 way, 3 way reverse, 4 way. Shafts can be rotated in both clockwise and counter-clockwise rotation direction. Mounting position available horizontal mount, over hung mount and wall mount.
5. Max. allowable torque 78.3 n.m, max. allowable power 11 kw, max. allowable speed 1500 rpm.
6. Low backlash, quiet low noise, low running temperature.

JTP110 Miter Gearbox Structures and Materials
Structures: gearbox housings, one pair or one pair and a half spiral bevel gears, input shafts, output shafts, bearings, sealings, shafts covers etc.
Spiral Bevel Gears
1. High purity rugged alloy steel 20CrMnTiH material
2. Carburizing process, case hardened and lapped in pairs for intersecting shafts
3. Low noise with grinded spiral teeth, high torque with milled teeth, high rigidity and wear risistance
Input Shafts and Output Shafts
1. Hardened and tempered alloy steel 40Cr material, hanging heavy load capacity With key and keyway
2. Customized stainless steel, chromium coated or other corrosion resistance painting.
3. Customized spline shaft,shaft without key and keyway
Gearbox Housings
1. High rigidity cast iron
2. Customized stainless steel, galvanic coating or other corrosion resistance painting
Bearings
1. Heavy duty tapered roller bearing
2. Customized reinforced bearings for higher radial and axial load
Oil Seals
1. Double lip oil seal
2. Prevent gear oil leak and dustproof


JTP110 Miter Gearbox Specifications

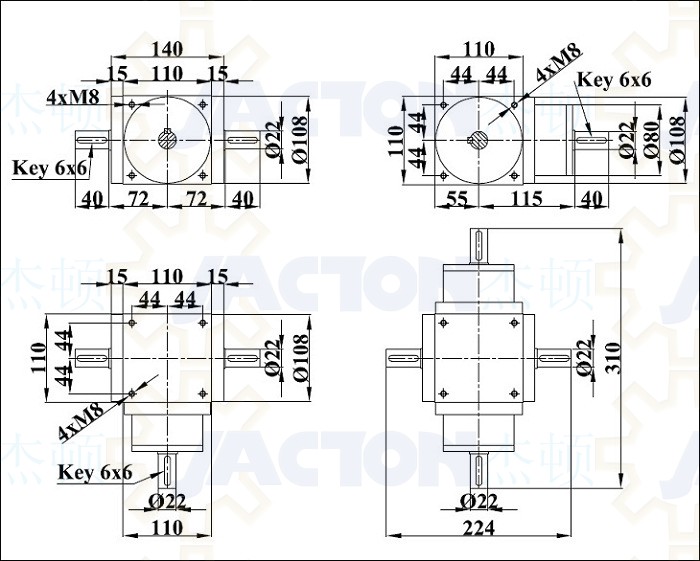

JTP110 Miter Gearbox Solid Shaft Input and Output Dimensions
Note: below drawing dimensions for standard soild input and output shaft with 1:1, 1.5:1 and 2:1 ratios. If other ratios such as 3:1 ratio with 20mm dia. input shaft & 22mm dia. output shaft, 4:1 ratio with 16mm dia. input shaft & 22mm dia. output shaft, 5:1 ratio with 14mm dia. input shaft & 22mm dia. output shaft.
