JTM10 Worm Screw Jack

Model: JTM10 Worm Screw Jack
Categories: JTM Worm Screw Jack »
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:
JTM10 Worm Screw Jack Picture


JTM10 Worm Screw Jack Features
1. Maximum load capacity 10KN or 1 ton.
2. Trapezoidal screw diameter 20 mm, pitch 4 mm. Gearbox sizes 115x82x86mm. Center height 38mm, center distance 32mm. Worm shaft diameter 14mm.
3. High gear ratio 1/5, low gear ratio 1/20.
4. Translating screw, rotating screw with bronze travelling nut, anti-rotation device keyed screw configurations in upright or inverted mounting orientation.
5. Precision positioning, self-locking trapezoidal screw which supports the loads and hold position with no need to employ brake mechanism or other locking systems.
6. Manual operation worm screw jack, Electric motor worm screw jack or Both are available.
7. Top plate (I), clevis end (II), plain end(III) and threaded end (IV) are available. Custom made spherical hinge, forked head.
8. Single unit or multiple-units JTM10 worm screw jack lifting systems arrangements are available.

JTM10 Worm Screw Jack Specifications

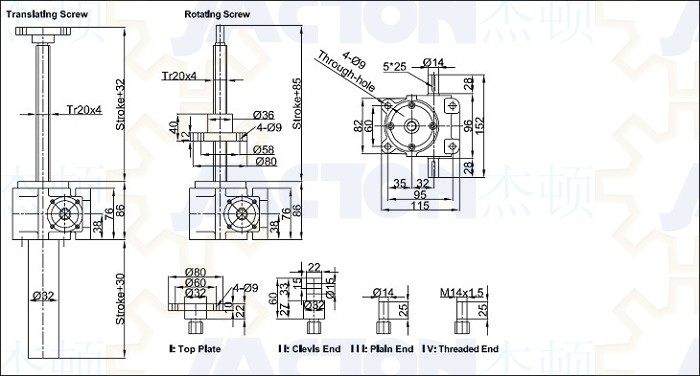

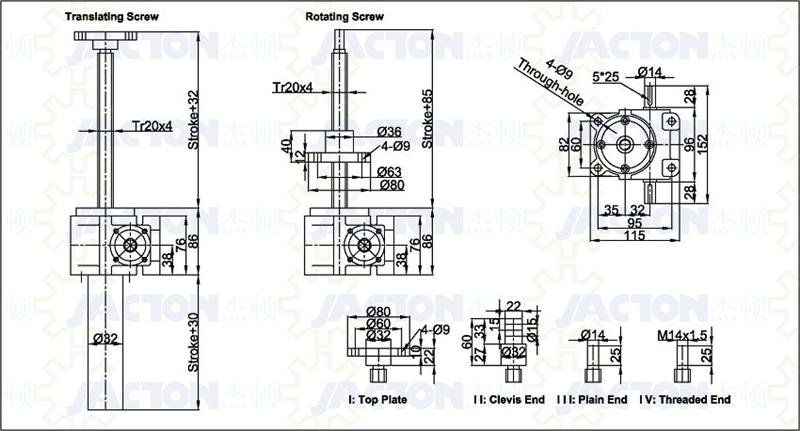

JTM10 Worm Screw Jack Dimensional Drawing
About 2D Autocad dwg, dxf assembly drawings, and 3D stp, step, model, igs, prt or catpart assembly drawings, please contact Jacton Industry directly.

Dimensions are subject to change without notice
