THE NAME:

8000KG Parallel Electric Motor-Drive Linear Actuator

Model: LAP8000
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:
Industrial Electric Linear Actuators With AC Motor: The electric linear actuator is a real power pack.As usual a critical installation space and lowest possible price are the basic constants of our design. The electric actuator is a reciprocating actuator driven by a motor. It is suitable for all linear motion which needs reciprocating and pushing. It can swing and rotate by means of other connecting rods. It has overload protection (mechanical and electrical overload protection) It is widely used in metallurgy, electric power, coal, chemical and other industries and so on, with the advantages of light weight, strong pulling force, low noise, low energy consumption and convenient installation and maintenance. , Especially for long-distance, high-altitude and dangerous situations instead of hydraulic, pneumatic devices, can be operated separately on-site and centralized control.

8000KG Parallel Electric Motor-Drive Linear Actuator, Heavy Duty Industrial Actuators for Electric Pneumatic Cylinder Replacement. 8000KG Parallel Electric Motor-Drive Linear Actuator includes heavy load capacity, high linear speed, long service life, low noise system, no oil leaks, contamination or fire risk, accurate and repeatable positioning using simplified system, easy synchronization, easy installation, no pipework, powerpack and valves, choice of end fittings like clevis, threaded end, top plate, trunnion mounting (with or without feet), proximity switches, guided ram (guiding the load side loads on the actuator ram should be avoided by ensuring that the load is guided), and bellows boots. 8000KG Parallel Electric Motor-Drive Linear Actuator are used for opening and closing, tilting and pivoting, lifting and lowering and positioning. For example gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines. Custom designs are also available for special applications.


8000KG Parallel Electric Motor-Drive Linear Actuator Technical Details & Drawings

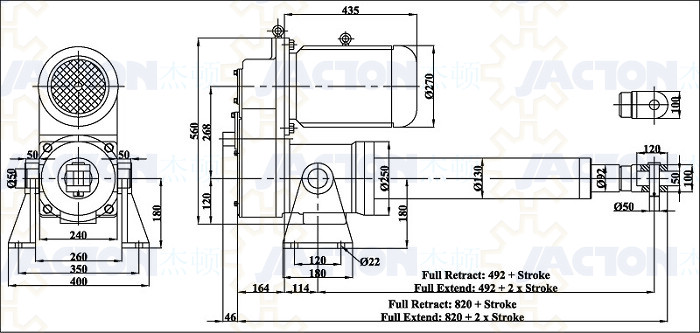

Trunnion Mounting Feet Drawings



8000KG Parallel Electric Motor-Drive Linear Actuator Internal Structure

1. Motor2. Gear (1st)3. Gearbox4. Gear (2nd)
5. Gear (3rd)6. Handwheel7. Gear (4th)8. ACME screw
9. Base10. Pull rod11. Safety switches12. Disc spring
13. Screw nut14. Guide rail 15. Guide bush16. Cylinder, 17. Rod end fork

8000KG Parallel Electric Motor-Drive Linear Actuators are application in gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor lifts, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines opening and closing, tilting and pivoting, lifting and lowering, and positioning etc. Custom designs linear cylinders are also available for your special applications.
