25000KG Parallel Electric Motor Linear Electric Actuator

Electric cylinder linear actuators are designed for high-capacity motion control applications. With lifting/lowering capacities from 2 to 25 tons. Designed for easy installation and minimal maintenance requirements. Long working life. Ball screw or acme screw designs. Ductile iron housing; chrome plated steel translating tube. Adjustable end-of-stroke limit switches. An Electric Linear Actuator is a device that pushes or pulls something in a linear direction or straight line. The rotational motion in its electric motors powered by electrical energy is what causes this motion.

25000KG Parallel Electric Motor Linear Electric Actuator, High Speed Electric Rod-Style Actuators Instead of Hydraulic & Pneumatic Cylinders. 25000KG Parallel Electric Motor Linear Electric Actuator features include heavy load capacity, high linear speed, long service life, low noise system, no oil leaks, contamination or fire risk, accurate and repeatable positioning using simplified system, easy synchronization, easy installation, no pipework, powerpack and valves, choice of end fittings like clevis, threaded end, top plate, trunnion mounting (with or without feet), proximity switches, guided ram (guiding the load side loads on the actuator ram should be avoided by ensuring that the load is guided), and bellows boots. 25000KG Parallel Electric Motor Linear Electric Actuator are used for opening and closing, tilting and pivoting, lifting and lowering and positioning. For example gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines. Custom designs are also available for special applications.


25000KG Parallel Electric Motor Linear Electric Actuator Technical Details & Drawings

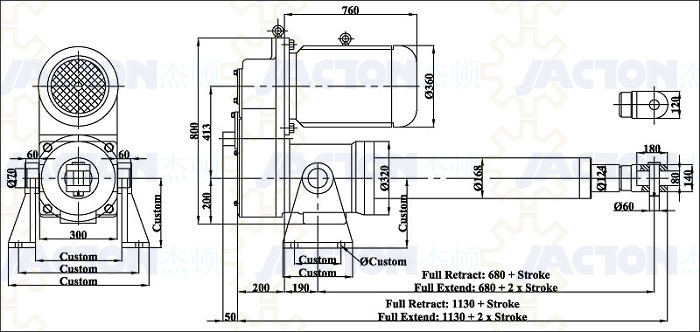

Trunnion Mounting Feet Drawings



25000KG Parallel Electric Motor Linear Electric Actuator Internal Structure

1. Motor	2. Gear (1st)	3. Gearbox	4. Gear (2nd)
5. Gear (3rd)	6. Handwheel	7. Gear (4th)	8. ACME screw
9. Base	10. Pull rod	11. Safety switches	12. Disc spring
13. Screw nut	14. Guide rail	15. Guide bush	16. Cylinder, 17. Rod end fork

25000KG Parallel Electric Motor Linear Electric Actuators are application in gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor lifts, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines opening and closing, tilting and pivoting, lifting and lowering, and positioning etc. Custom designs linear cylinders are also available for your special applications.
