Four Lifting Points Systems

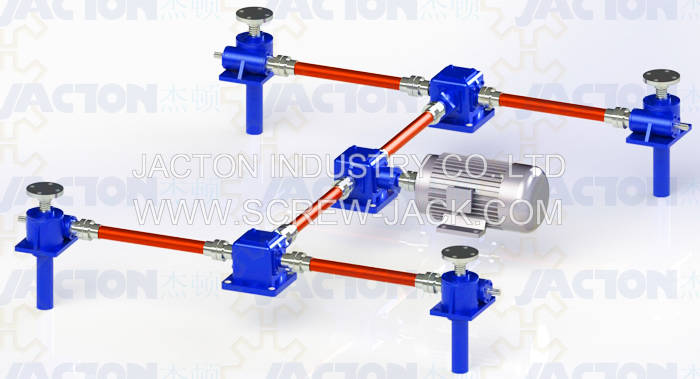

Four of the most popular system configurations are the H, U, T and I configured jacking systems. Note that multiple screw jacks can be linked together mechanically or electrically. The latter is useful if there is no space for linking drive shafts. If multiple machine screw jacks are connected in a mechanically linked system then the complete system may be considered self-locking. Alternatively, to be sure, include a brake on the system either as a stand alone device or as a brake motor. Providing dependable linear actuator systems from sports arenas, education, medical to heavy metal industry to aviation we have the ability to, quite literally, raise the roof.

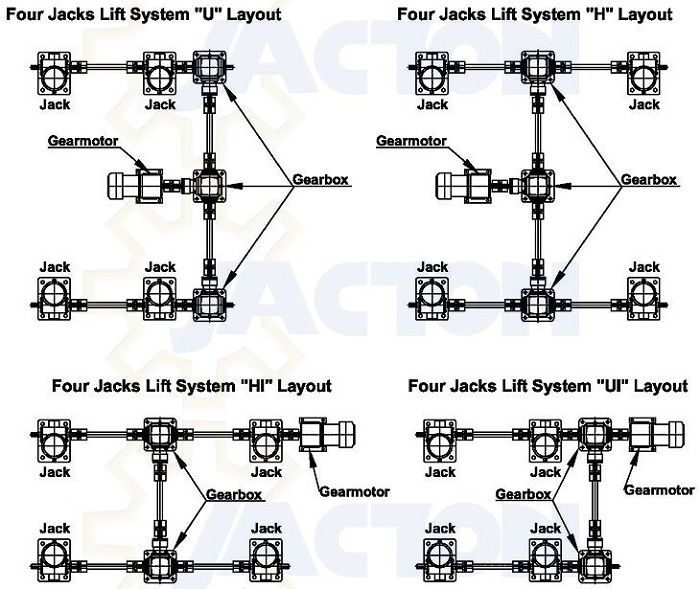

Four Lifting Points Systems Configurations
* U - configuration: 4pcs worm gear screw jacks+11pcs couplings+3pcs miter gearboxes+1pc motor/reducer (electrically) or 1pc hand wheel (manually).
* H - configuration: 4pcs worm gear screw jacks+13pcs couplings+3pcs miter gearboxes+1pc motor/reducer (electrically) or 1pc hand wheel (manually).
* HI - configuration: 4pcs worm gear screw jacks+11pcs couplings+2pcs miter gearboxes+1pc motor/reducer (electrically) or 1pc hand wheel (manually).
* UI - configuration: 4pcs worm gear screw jacks+9pcs couplings+2pcs miter gearboxes+1pc motor/reducer (electrically) or 1pc hand wheel (manually).

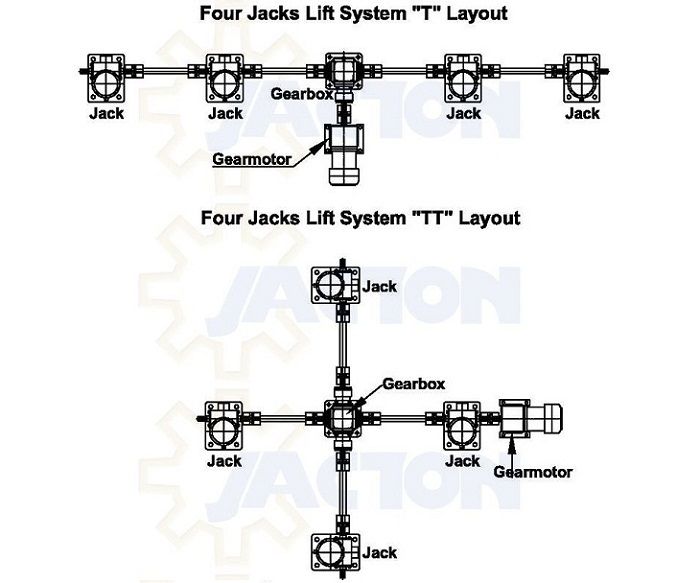

* T - configuration: 4pcs worm gear screw jacks+9pcs couplings+1pc miter gearbox+1pc motor/reducer (electrically) or 1pc hand wheel (manually).
* TT - configuration: 4pcs worm gear screw jacks+9pcs couplings+1pcs bevel gearbox+1pc motor/reducer (electrically) or 1pc hand wheel (manually).
Note: When connecting shafts length is exceed maximum distance of between supports, Pillow blocks are required.
