THE NAME:

JTP240 Miter Gearbox

Model: JTP240-Mitergearbox-1To1-5To1
Categories: JTP Miter Gearbox »
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:

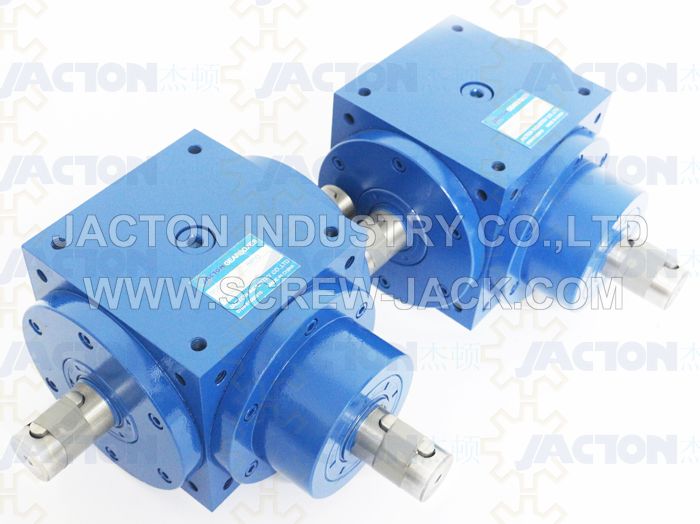

JTP240 Miter Gearbox Pictures


JTP240 Miter Gearbox Descriptions
1. Gear ratios 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
2. Cubic gearbox sizes 240x240x240mm, with all-round tapped holes for universal mounting, 6 possible universal mounting positions, can be easily mounted in any direction.
3. Configuration available input and output solid shaft, input solid shaft with output hollow shaft, input IEC flange with output solid shaft, input IEC flange with output hollow shaft. For hollow shaft and IEC flange, please consult us.
4. 48mm diameter drive shafts. Shafts arrangements available 2 way, 2 way reverse, 3 way, 3 way reverse, 4 way. Shafts can be rotated in both clockwise and counter-clockwise rotation direction. Mounting position available horizontal mount, over hung mount and wall mount.
5. Max. allowable torque 694 n.m, max. allowable power 90.5 kw, max. allowable speed 1500 rpm.
6. Low backlash, quiet low noise, low running temperature.

JTP240 Miter Gearbox Structures and Materials
Structures: gearbox housings, one pair or one pair and a half spiral bevel gears, input shafts, output shafts, bearings, sealings, shafts covers etc.
Spiral Bevel Gears
1. High purity rugged alloy steel 20CrMnTiH material
2. Carburizing process, case hardened and lapped in pairs for intersecting shafts
3. Low noise with grinded spiral teeth, high torque with milled teeth, high rigidity and wear risistance
Input Shafts and Output Shafts
1. Hardened and tempered alloy steel 40Cr material, hanging heavy load capacity With key and keyway
2. Customized stainless steel, chromium coated or other corrosion resistance painting.
3. Customized spline shaft,shaft without key and keyway
Gearbox Housings
1. High rigidity cast iron
2. Customized stainless steel, galvanic coating or other corrosion resistance painting
Bearings
1. Heavy duty tapered roller bearing
2. Customized reinforced bearings for higher radial and axial load
Oil Seals
1. Double lip oil seal
2. Prevent gear oil leak and dustproof

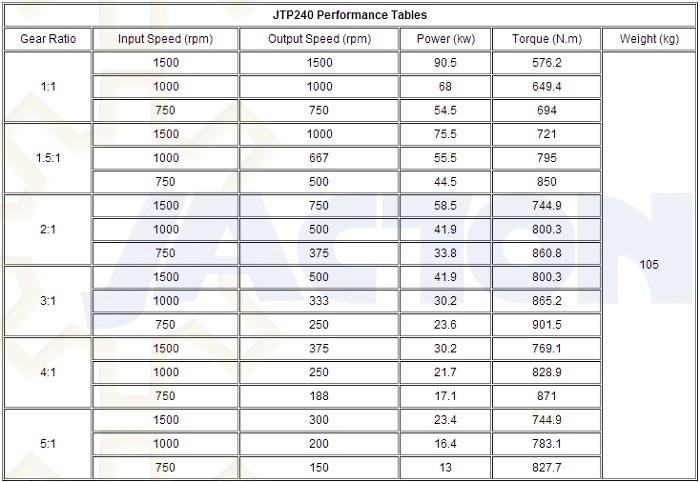

JTP240 Miter Gearbox Specifications

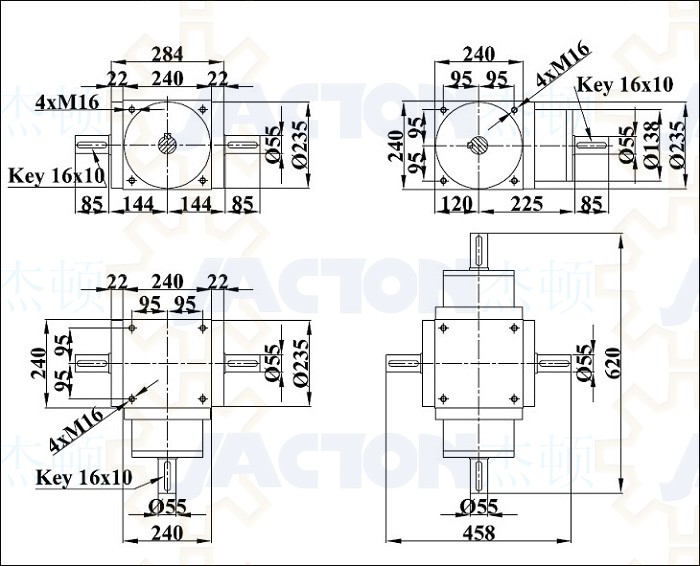

JTP240 Miter Gearbox Solid Shaft Input and Output Dimensions
Note 1: below drawing dimensions for standard soild input and output shaft with 1:1, 1.5:1 and 2:1 ratios. If other ratios such as 3:1 ratio with 45mm dia. input shaft & 55mm dia. output shaft, 4:1 ratio with 38mm dia. input shaft & 55mm dia. output shaft, 5:1 ratio with 35mm dia. input shaft & 55mm dia. output shaft
Note 2: Custom made solid input shaft and output hollow shaft (hollow shaft diameter max. 55mm).
Note 3: Custom made input IEC flange with solid output shaft, suitable IEC motor flange include IEC 100B5, 112B5, 132B5, 160B5, 180B5, also customized other motor flange sizes.
Note 4: Custom made input IEC flange with output hollow shaft (hollow shaft diameter max. 55mm), suitable IEC motor flange include IEC 100B5, 112B5, 132B5, 160B5, 180B5, also customized other motor flange sizes.



JTP240 Miter Gearbox Ordering Information


JTP  –  240  –  1:1  –  1500R  –  1500R  –  C  –  B3

   1           2          3             4                5            6        7

1. Gearbox Series
JT: "Jacton" brand
P: P series miter gearbox

2. Model
240:
Cubic gearbox sizes 240x240x240mm
Before selecting JTP240, please check above JTP240 Miter Gearbox Specifications

3. Gear Ratio
* Gear ratios such as 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
* Reducer: If ratio is not 1:1, if input speed on input shaft, output speed will be reduced.
* Increaser: If input speed on the output shaft, but input shaft as the output shaft, the output speed will be increased.


4 & 5. Input & Output RPM


6. Shaft Arrangements And Direction Of Shaft Rotating
Drive shafts can be rotated in both clockwise and counter-clockwise rotation directions.
A: three way shafts, input shaft CW, both sides output shafts CW.
B: three way shafts, input shaft CW, both sides output shafts CCW.
C: two way shafts, input shaft CW, right side output shaft CW.
D: two way shafts, input shaft CW, right side output shaft CCW.
E: two way shafts, input shaft CW, left side output shaft CW.
F: two way shafts, input shaft CW, left side output shaft CCW.
G: four way shafts, input shaft CW, inline input shaft CCW, both sides output shaft CW.
H: four way shafts, input shaft CW, inline input shaft CCW, both sides output shaft CCW.
J: three way shafts, input shaft CW, inline input shaft CCW, right side output shaft CW.
K: three way shafts, input shaft CW, inline input shaft CCW, right side output shaft CCW.
L: three way shafts, input shaft CW, inline input shaft CCW, left side output shaft CW.
M: three way shafts, input shaft CW, inline input shaft CCW, left side output shaft CCW.


7. Mounting Position
* Horizontal mount codes: B3, B7, V3, V6
* Over hung mount codes: B5, B6, V5, V8
* Wall mount codes: B8, B9, V7, V9



JTP240 Miter Gearbox Applications

JTP240 miter gearbox is widely applied in screw jack lift system, food processing, robotics, rubber processing, wrapping machine, solar panel, commercial mower, street sweeper, dual steering, bulkhead door opener, scissor lift, vertical pump drive, sand spreader, residential mower, car wash curtain, snow blower, mining equipment, crane, agricultural, grain wagon, harvester, forage harvester, manure spreader and fertilizer spreader. Whatever your goal is to blend, blow, bottle, crank, cut, convey or the task is to press, propel or raise, JTP240 miter gearbox is welcomed and ideal power transmission solution with all these industries.
