JTP280 Miter Gearbox

Model: JTP280-Mitergearbox-1To1-5To1
Categories: JTP Miter Gearbox »
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:

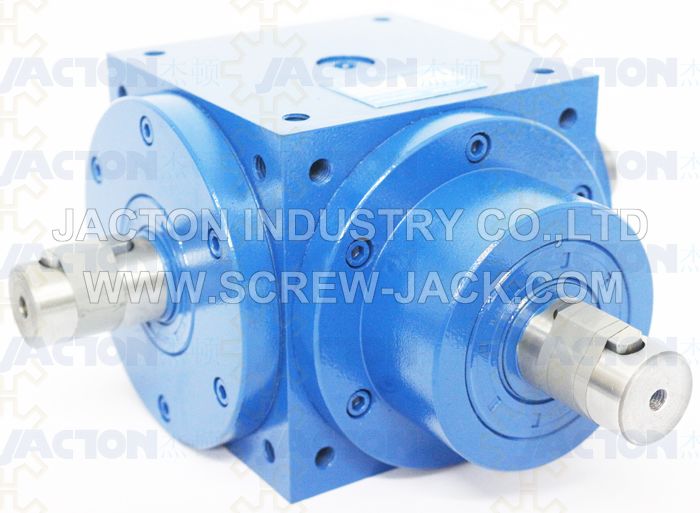

JTP280 Miter Gearbox Pictures


JTP280 Miter Gearbox Descriptions
1. Gear ratios 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
2. Gearbox with all-round tapped holes for universal mounting, 6 possible mounting positions.
3. Configuration available input and output solid shaft, input solid shaft with output hollow shaft, input IEC flange with output solid shaft, input IEC flange with output hollow shaft. For hollow shaft and IEC flange, please consult us!!
4. 60mm diameter drive shafts. Shafts arrangements available 2 way, 3 way, 4 way. Shafts can be rotated in both clockwise and counter-clockwise rotation direction. Mounting position available horizontal mount, over hung mount and wall mount.
5. Max. allowable torque 1199 n.m, max. allowable power 156 kw, max. allowable speed 1500 rpm.
6. Low backlash, quiet low noise, low running temperature.

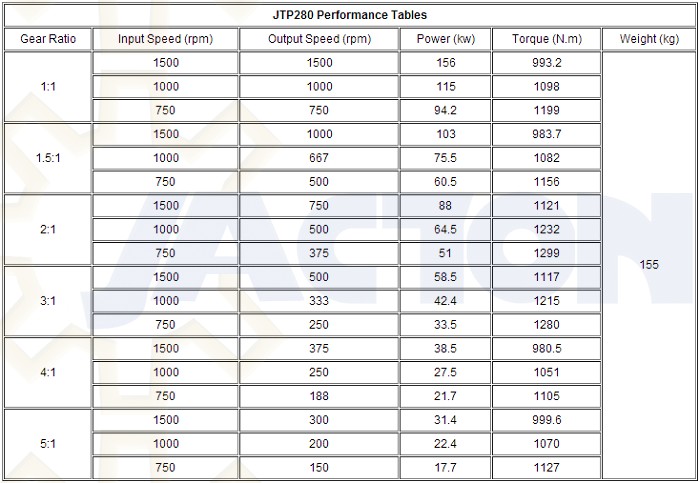

JTP280 Miter Gearbox Specifications

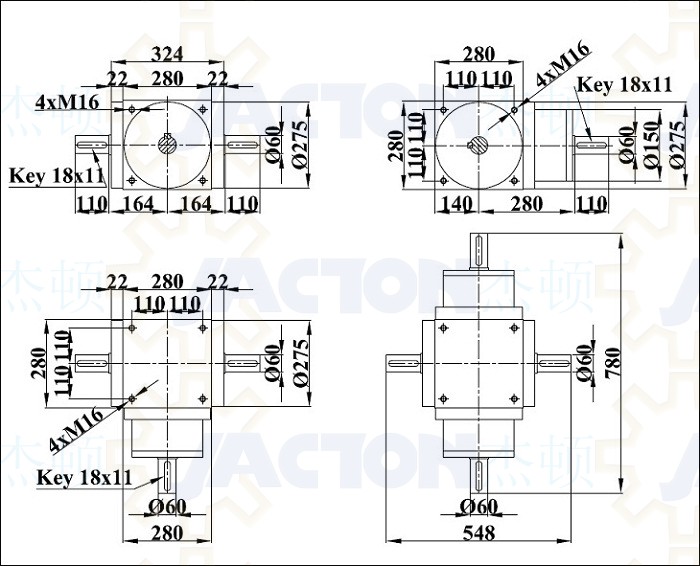

JTP280 Miter Gearbox Solid Shaft Input and Output Dimensions


JTP280 Miter Gearbox Ordering Information


JTP  –  280  –  1:1  –  1500R  –  1500R  –  C  –  B3

   1           2          3             4                5            6        7

1. Gearbox Series
JT: "Jacton" brand
P: P series miter gearbox

2. Model
280:
Cubic gearbox sizes 280x280x280mm
Before selecting JTP280, please check above JTP280 Miter Gearbox Specifications

3. Gear Ratio
* Gear ratios such as 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
* Reducer: If ratio is not 1:1, if input speed on input shaft, output speed will be reduced.
* Increaser: If input speed on the output shaft, but input shaft as the output shaft, the output speed will be increased.


4 & 5. Input & Output RPM


6. Shaft Arrangements And Direction Of Shaft Rotating
Drive shafts can be rotated in both clockwise and counter-clockwise rotation directions.
A: three way shafts, input shaft CW, both sides output shafts CW.
B: three way shafts, input shaft CW, both sides output shafts CCW.
C: two way shafts, input shaft CW, right side output shaft CW.
D: two way shafts, input shaft CW, right side output shaft CCW.
E: two way shafts, input shaft CW, left side output shaft CW.
F: two way shafts, input shaft CW, left side output shaft CCW.
G: four way shafts, input shaft CW, inline input shaft CCW, both sides output shaft CW.
H: four way shafts, input shaft CW, inline input shaft CCW, both sides output shaft CCW.
J: three way shafts, input shaft CW, inline input shaft CCW, right side output shaft CW.
K: three way shafts, input shaft CW, inline input shaft CCW, right side output shaft CCW.
L: three way shafts, input shaft CW, inline input shaft CCW, left side output shaft CW.
M: three way shafts, input shaft CW, inline input shaft CCW, left side output shaft CCW.


7. Mounting Position
* Horizontal mount codes: B3, B7, V3, V6
* Over hung mount codes: B5, B6, V5, V8
* Wall mount codes: B8, B9, V7, V9



JTP280 Miter Gearbox Applications

JTP280 miter gearbox is widely applied in screw jack lift system, food processing, robotics, rubber processing, wrapping machine, solar panel, commercial mower, street sweeper, dual steering, bulkhead door opener, scissor lift, vertical pump drive, sand spreader, residential mower, car wash curtain, snow blower, mining equipment, crane, agricultural, grain wagon, harvester, forage harvester, manure spreader and fertilizer spreader. Whatever your goal is to blend, blow, bottle, crank, cut, convey or the task is to press, propel or raise, JTP280 miter gearbox is welcomed and ideal power transmission solution with all these industries.
