THE NAME:

63KG In-line 700mm Stroke Electric Motor Linear Actuator

Model: LA63
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:
Can Linear Actuators have limit switches? Linear actuators can be supplied with limit switches. The type of limit switches available varies with each product range, these include electro-mechanical, magnetic proximity and rotary cam. Limit switches (if fitted) are normally pre-set on actuators. Limit switches allow you the flexibility to set the limits of travel on your actuator to fit your particular application. The customer is responsible for properly setting the limit switch in the unit. If the limit switches are not set, or are improperly set, the unit may be damaged during operation. In addition, limit switches may require resetting if the translating tube of your linear actuator is rotated manually, as this will change the limit switch setting.

63KG In-line 700mm Stroke Electric Motor Linear Actuator, Rodless Linear Screw Actuators to Replace Hydraulic Linear Actuators and Pneumatic Actuators. 63KG In-line 700mm Stroke Electric Motor Linear Actuator features include heavy load capacity, high linear speed, long service life, low noise system, no oil leaks, contamination or fire risk, accurate and repeatable positioning using simplified system, easy synchronization, easy installation, no pipework, powerpack and valves, choice of end fittings like clevis, threaded end, top plate, trunnion mounting (with or without feet), proximity switches, guided ram (guiding the load side loads on the actuator ram should be avoided by ensuring that the load is guided), and bellows boots. 63KG In-line 700mm Stroke Electric Motor Linear Actuator can not only match the load capacity of hydraulic cylinders and exceed the load capacity of conventional electric linear actuators. Main application in coiling machines, decoiling machines, continuous operation process lines, tundish cars, scissor lifts, lifting platforms, robotics, continuous paint pumps, medical beds, gates, dampers, oven and processing tank doors, antennas, and agricultural equipment.


63KG In-line 700mm Stroke Electric Motor Linear Actuator Technical Details & Drawings

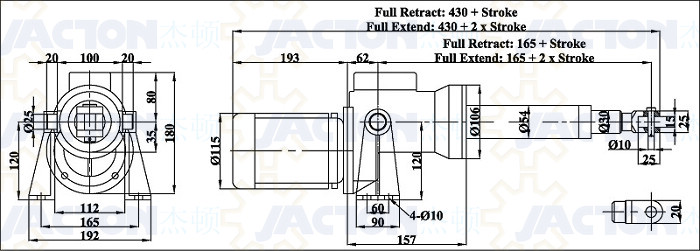

Trunnion Mounting Feet Drawings



63KG In-line 700mm Stroke Electric Motor Linear Actuators are application in gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor lifts, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines opening and closing, tilting and pivoting, lifting and lowering, and positioning etc. Custom designs linear cylinders are also available for your special applications.
