THE NAME:

6300KG Parallel Motor Drive Electric Actuator Linear Actuator

Model: LAP6300
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:
Industrial electrical linear actuator systems are rugged enough to withstand a wide range of temperatures and environmental conditions. They can also meet the demands of high force and high-speed requirements. Because we can offer you both a cost-efficient alternative to hydraulics and pneumatics, as well as timely customer service to help complete all of your projects efficiently.

6300KG Parallel Motor Drive Electric Actuator Linear Actuator, Heavy Duty Electric Actuators Replacement for Hydraulic Actuators and Pneumatic Cylinders. 6300KG Parallel Motor Drive Electric Actuator Linear Actuator are consist of electric motor or brake motor, acme lead screw, helical spur gearbox, thrust bearing housing, tapered roller thrust bearings, outer casing, screw support bearing, bearing support, wiper seal, inner ram, and clevis End. The acme lead screw converts rotary motion to linear movement. As the screw rotates, the nut extends and retracts the ram, which is attached to the load. 6300KG Parallel Motor Drive Electric Actuator Linear Actuator are used for opening and closing, tilting and pivoting, lifting and lowering and positioning. For example gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines. Custom designs are also available for special applications.


6300KG Parallel Motor Drive Electric Actuator Linear Actuator Technical Details & Drawings

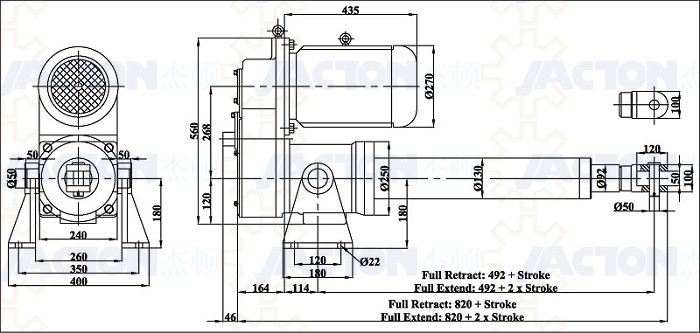

Trunnion Mounting Feet Drawings



6300KG Parallel Motor Drive Electric Actuator Linear Actuator Internal Structure

1. Motor2. Gear (1st)3. Gearbox4. Gear (2nd)
5. Gear (3rd)6. Handwheel7. Gear (4th)8. ACME screw
9. Base10. Pull rod11. Safety switches12. Disc spring
13. Screw nut14. Guide rail 15. Guide bush16. Cylinder, 17. Rod end fork

6300KG Parallel Motor Drive Electric Actuator Linear Actuator are application in gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor lifts, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines opening and closing, tilting and pivoting, lifting and lowering, and positioning etc. Custom designs linear cylinders are also available for your special applications.
