THE NAME:

100KG Parallel Electromechanical Linear Actuators

Model: LAP100
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:
What is a Linear Actuator? An Electric Linear Actuator is a device that pushes or pulls something in a linear direction or straight line. The rotational motion in its electric motors powered by electrical energy is what causes this motion.

100KG Parallel Electromechanical Linear Actuators Replace Hydraulic or Pneumatic Cylinder. 100KG Parallel Electromechanical Linear Actuators include heavy load capacity, high linear speed, long service life, low noise system, no oil leaks, contamination or fire risk, accurate and repeatable positioning using simplified system, easy synchronization, easy installation, no pipework, powerpack and valves, choice of end fittings like clevis, threaded end, top plate, trunnion mounting (with or without feet), proximity switches, guided ram (guiding the load side loads on the actuator ram should be avoided by ensuring that the load is guided), and bellows boots.


100KG Parallel Electromechanical Linear Actuators Technical Details & Drawings

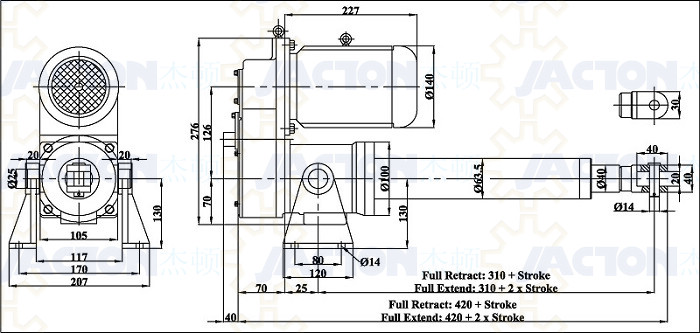

Trunnion Mounting Feet Drawings



100KG Parallel Electromechanical Linear Actuators Internal Structure

1. Motor2. Gear (1st)3. Gearbox4. Gear (2nd)
5. Gear (3rd)6. Handwheel7. Gear (4th)8. ACME screw
9. Base10. Pull rod11. Safety switches12. Disc spring
13. Screw nut14. Guide rail 15. Guide bush16. Cylinder, 17. Rod end fork

100KG Parallel Electromechanical Linear Actuators are application in gates, dampers, oven and processing tank doors, antennas, orthopedic tables and other medical equipment, ergonomic furniture, and agricultural equipment, scissor lifts, scissor platforms, lifting platforms, robotics, continuous paint pumps, medical beds, coiling machines, tundish cars, continuous operation process lines opening and closing, tilting and pivoting, lifting and lowering, and positioning etc. Custom designs linear cylinders are also available for your special applications.
