JTW-15T Machine Screw Jack

Model: JTW-15T-Machinescrewjack-Tr58x12
Categories: JTW Machine Screw Jack »
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:
JTW-15T Machine Screw Jack Pictures


JTW-15T Machine Screw Jack Features
1. Maximum load capacity 15 ton, maximum torque 163 Nm.
2. Lift screw diameter 58 mm, pitch 12 mm. Gearbox sizes 240x202x144mm. Center height 70mm, center distance 67mm. Worm shaft diameter 25mm.
3. 8:1, 24:1 gear ratios
4. Translating screw, rotating screw with aluminum bronze traveling nut, non-rotation keyed screw configurations in upright or inverted mounting orientation.
5. Precisely positioning, self-locking acme screw which supports the loads and hold position with no need to employ brake mechanism or other locking systems.
6. Manual machine screw jack by hand wheel or hand crank, electrical drive machine screw jack by electric motor or gearmotor driven, or both.
7. 3-phase or single phase motor driven with 1500 rpm input, standard lifting speed 2250 mm/min and 750 mm/min.
8. Top plate (I), clevis end (II), plain end(III) and threaded end (IV) are available. Custom made spherical hinge, forked head.

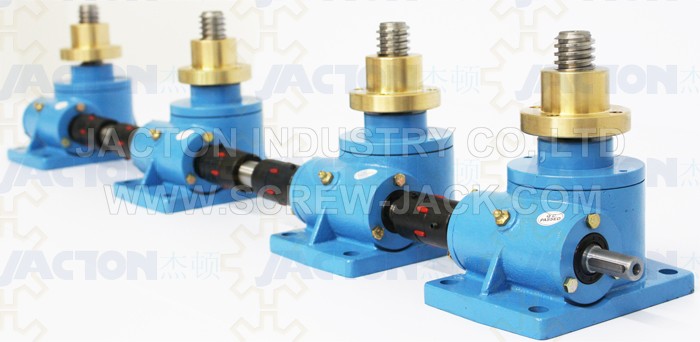

9. Individually or multiple jtw-15t machine screw jack lift system arrangements are available.

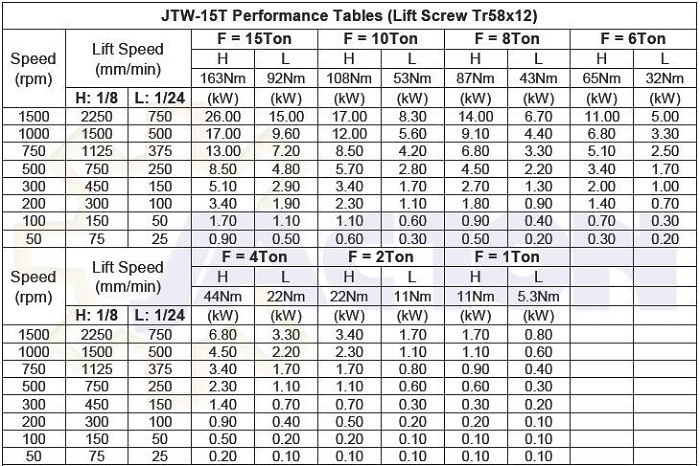

JTW-15T Machine Screw Jack Specifications
* Note:
The dark gray figures in the tables indicates operational restrictions due to thermal limits. Static only (dynamic not permitted). Selection of screw jacks using these figures should only be carried out in consultation with our engineers. When your selection is made within the areas dark gray, you will need to reduce duty cycle or choose larger model screw jacks in order to allow effective heat dissipation.
* Conditions: Duty cycle 20%/h or 30%/10min, 20 °C ambient temperature.
* Gear Ratios: H: high ratio, L: slow ratio.
* Nm: Input torque required, kW: Input power required.


JTW-15T Machine Screw Jack Dimensional Drawing
About 2D Autocad dwg, dxf assembly drawings, and 3D stp, step, model, igs, prt or catpart assembly drawings, please contact Jacton Industry directly.

Dimensions are subject to change without notice
