THE NAME:

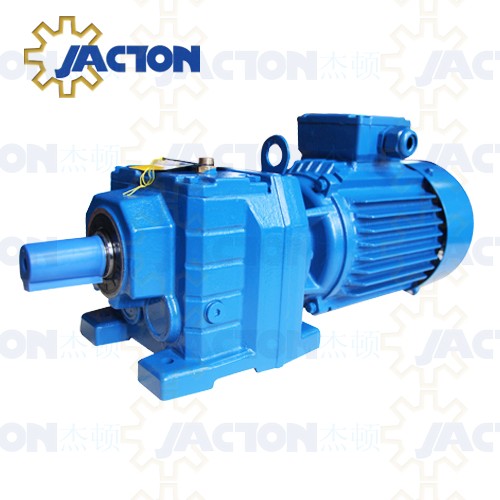

R37 RF37 Helical Gearmotor 0.18kw-0.55kw 0.75kw 1.1kw 1.5kw 2.2kw 3kw

Model: R37 RF37 Helical Gearmotor
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:
R37 RF37 Helical Gearmotor 0.18kw 0.25kw 0.37kw 0.55kw 0.75kw 1.1kw 1.5kw 2.2kw 3kw Features
1. Torque Range: Up to 200Nm.
2. Input Power Rating: 0.18kw, 0.25kw, 0.37kw, 0.55kw, 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw.
3. Transmission Gear Reduction Ratios: 3.33 to 134.82.
4. Input Configuration: IEC motor adapter, solid shaft.
5. Output Configuration: solid shaft with key, hollow shaft.
6. Mounting solution: direct type vertical flange-mounted B5, horizontal type foot-mounted.
7. Carburized and grinded teeth, high load capability, can be added up with other reducers to realize low-speed transmission.


R37 RF37 Helical Gearmotor 0.18kw 0.25kw 0.37kw 0.55kw 0.75kw 1.1kw 1.5kw 2.2kw 3kw Dimensions and Motor Power


R37 RF37 Helical Gearmotor 0.18kw 0.25kw 0.37kw 0.55kw 0.75kw 1.1kw 1.5kw 2.2kw 3kw Selection Guides


R       F       37       Y       0.25       4P       21.22       M1       0        Φ160
1          2        3         4          5           6            7             8        9            10

1. R:
 R Series Helical Gearmotor / Helical Gear Reducer
2. Structure Types:
* No Marks R: Foot-mounted helical gearmotors with solid shaft output.
* RF: Flange-mounted helical gearmotors with solid shaft output.
* RS: Foot-mounted, shaft input helical gearmotors with solid shaft output.
* RFS: Flange-mounted, shaft input helical gearmotors with solid shaft output.
* R...R: Foot-mounted combinatorial helical gearmotors with solid shaft output.
* RF...R: Flange-mounted combinatorial helical gearmotors with solid shaft output.
* RS...R: Foot-mounted combinatorial shaft input helical gearmotors with solid shaft output.
* RFS...R: Flange-mounted combinatorial shaft input helical gearmotors with solid shaft output.

3. Sizes: 37 (dimensions above)
4. Motor Code:
* Y (Y2): Normal (Renew) 3-phase motors
* B: Explosion-proof motors
* Z: Direct-current DC motors
* YEJ: Brake motors
* D: Multi-speed motors
* YVP: Variable frequency motors
* YCT: Electromagnetic speed regulation motors
* R: Crane and metallurgy motors
* YVPJ: Variable frequency and brake motors
* G: Roller table motors
5. Motor power & 6. Pole & 7. Transmission ratio: see below websites
0.18kw: http://www.screw-jack.com/018kw-helical-gearmotor-specifications.html
0.25kw: http://www.screw-jack.com/025kw-helical-gearmotor-specifications.html
0.37kw: http://www.screw-jack.com/037kw-helical-gearmotor-specifications.html
0.55kw: http://www.screw-jack.com/055kw-helical-gearmotor-specifications.html
0.75kw: http://www.screw-jack.com/075kw-helical-gearmotor-specifications.html
1.1kw: http://www.screw-jack.com/11kw-helical-gearmotor-specifications.html
1.5kw: http://www.screw-jack.com/15kw-helical-gearmotor-specifications.html
2.2kw: http://www.screw-jack.com/22kw-helical-gearmotor-specifications.html
3kw: http://www.screw-jack.com/3kw-helical-gearmotor-specifications.html
8. Mounting position: M1, M2, M3, M4, M5, M6 (see below picture)

9. Position of the motor thermal box: 0, 90, 180, 270 degrees (see below picture)

10. Outer diameter of output flange: Φ160 or Φ200
