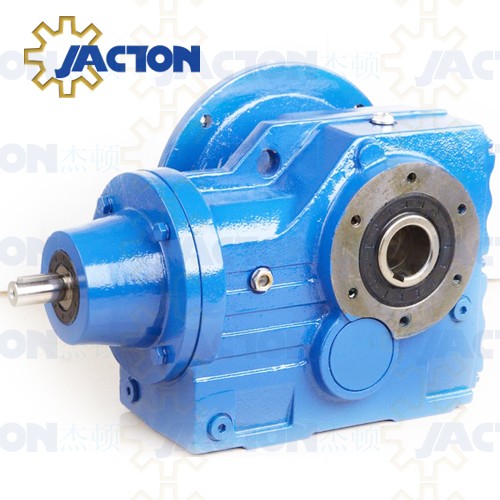

K97 KA97 KF97 KAF97 KAZ97 KAB97 KAT97 Helical-bevel Gearmotor Features
K97 KA97 KF97 KAF97 KAZ97 KAB97 KAT97 Helical-bevel Gearmotor input power 1.1kw, 1.5kw, 2.2kw, 3kw, 4kw, 5.5kw, 7.5kw, 11kw, 15kw, 18.5kw, 22kw, 30kw, max. permissible torque up to 4300Nm, transmission ratios from 8.95 to 196.05, available versions include Foot-mounted or flange-mounted, Solid or hollow shaft, B5 or B14 Flange-mounted, Hollow shaft with keyed connection, shrink disc, splined hollow shaft or Torque arm mounted.
K97 KA97 KF97 KAF97 KAZ97 KAB97 KAT97 Helical-bevel Gearmotor provide a high degree of efficiency of over 96% in both torque directions and at all input speeds. With performance designed to last–high-endurance gearing enables high-torque, wear-free operation. With our remarkably efficient helical-bevel gearmotors, you have energy-saving angular gear drives at your fingertips. As they also have a long maintenance-free service life, they can be used in every application with AC asynchronous motors, asynchronous and synchronous servomotors.
K97 KA97 KF97 KAF97 KAZ97 KAB97 KAT97 Helical-bevel Gearmotor Dimensions and Motor Power
K97 KA97 KF97 KAF97 KAZ97 KAB97 KAT97 Helical-bevel Gearmotor Selection GuidesK AF 97 Y 2.2 - 4P 60.66 M1 0 A CW
1 2 3 4 5 6 7 8 9 10
1. K: K Series Helical-bevel Gearmotor / Helical-bevel Gear Reducer
2. Structure Types:* No Marks K: Foot-mounted helical-bevel gearmotors with solid shaft.
* KA: Helical-bevel gearmotors with hollow shaft.
* KF: B5 Flange-mounted helical-bevel gearmotors with solid shaft.
* KAF: B5 Flange-mounted helical-bevel gearmotors with hollow shaft.
* KAB: Foot-mounted helical-bevel gearmotors with hollow shaft.
* KAZ: B14 Flange-mounted helical-bevel gearmotors with hollow shaft.
* KAT: Torque arm mounted helical-bevel gearmotors with hollow shaft.
3. Sizes: 97 (dimensions above)
4. Motor Code:* Y (Y2): Normal (Renew) 3-phase motors
* B: Explosion-proof motors
* Z: Direct-current DC motors
* YEJ: Brake motors
* D: Multi-speed motors
* YVP: Variable frequency motors
* YCT: Electromagnetic speed regulation motors
* R: Crane and metallurgy motors
* YVPJ: Variable frequency and brake motors
* G: Roller table motors
5. Motor power & Pole & 6. Transmission ratio: see below websites
1.1kw: http://www.screw-jack.com/11kw-helical-bevel-gearmotor-specifications.html
1.5kw: http://www.screw-jack.com/15kw-helical-bevel-gearmotor-specifications.html
2.2kw: http://www.screw-jack.com/22kw-helical-bevel-gearmotor-specifications.html
3kw: http://www.screw-jack.com/3kw-helical-bevel-gearmotor-specifications.html
4kw: http://www.screw-jack.com/4kw-helical-bevel-gearmotor-specifications.html
5.5kw: http://www.screw-jack.com/55kw-helical-bevel-gearmotor-specifications.html
7.5kw: http://www.screw-jack.com/75kw-helical-bevel-gearmotor-specifications.html
11kw: http://www.screw-jack.com/110kw-helical-bevel-gearmotor-specifications.html
15kw: http://www.screw-jack.com/150kw-helical-bevel-gearmotor-specifications.html
18.5kw: http://www.screw-jack.com/185kw-helical-bevel-gearmotor-specifications.html
22kw: http://www.screw-jack.com/220kw-helical-bevel-gearmotor-specifications.html
30kw: http://www.screw-jack.com/30kw-helical-bevel-gearmotor-specifications.html
7. Mounting position: M1, M2, M3, M4, M5, M6 (see below picture)
8. Position of the motor thermal box: 0, 90, 180, 270 degrees (see below picture)
9. Position of output shaft, shrink disc or flange: A, B, or A+B
10. Rotation directions of output shaft: CW (clockwise) or CCW (counter clockwise)
