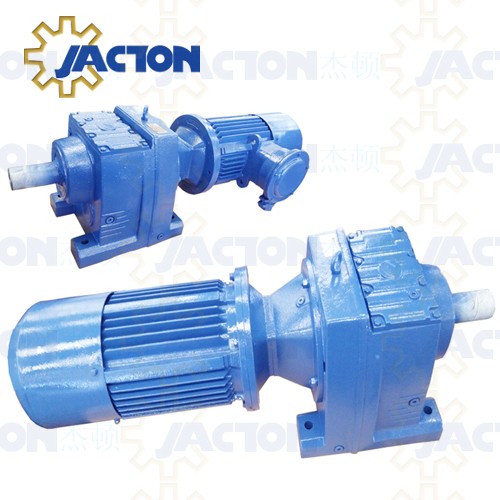

R167 RF167 Helical Gearmotor 11kw 15kw 18.5kw 22kw 30kw 37kw 45kw 55kw 75kw 90kw 110kw 132kw 160kw Features
1. Torque Range: Up to 18000Nm.
2. Input Power Rating: 11kw, 15kw, 18.5kw, 22kw, 30kw, 37kw, 45kw, 55kw, 75kw, 90kw, 110kw, 132kw, 160kw.
3. Transmission Gear Reduction Ratios: 10.24 to 229.71.
4. Input Configuration: IEC motor adapter, solid shaft.
5. Output Configuration: solid shaft with key, hollow shaft.
6. Mounting solution: direct type vertical flange-mounted B5, horizontal type foot-mounted.
7. Carburized and grinded teeth, high load capability, can be added up with other reducers to realize low-speed transmission.
R167 RF167 Helical Gearmotor 11kw 15kw 18.5kw 22kw 30kw 37kw 45kw 55kw 75kw 90kw 110kw 132kw 160kw Dimensions and Motor Power
R167 RF167 Helical Gearmotor 11kw 15kw 18.5kw 22kw 30kw 37kw 45kw 55kw 75kw 90kw 110kw 132kw 160kw Selection GuidesR F 167 Y 30 4P 12.83 M1 0 Φ550
1 2 3 4 5 6 7 8 9 10
1. R: R Series Helical Gearmotor / Helical Gear Reducer
2. Structure Types:* No Marks R: Foot-mounted helical gearmotors with solid shaft output.
* RF: Flange-mounted helical gearmotors with solid shaft output.
* RS: Foot-mounted, shaft input helical gearmotors with solid shaft output.
* RFS: Flange-mounted, shaft input helical gearmotors with solid shaft output.
* R...R: Foot-mounted combinatorial helical gearmotors with solid shaft output.
* RF...R: Flange-mounted combinatorial helical gearmotors with solid shaft output.
* RS...R: Foot-mounted combinatorial shaft input helical gearmotors with solid shaft output.
* RFS...R: Flange-mounted combinatorial shaft input helical gearmotors with solid shaft output.
3. Sizes: 167 (dimensions above)
4. Motor Code:* Y (Y2): Normal (Renew) 3-phase motors
* B: Explosion-proof motors
* Z: Direct-current DC motors
* YEJ: Brake motors
* D: Multi-speed motors
* YVP: Variable frequency motors
* YCT: Electromagnetic speed regulation motors
* R: Crane and metallurgy motors
* YVPJ: Variable frequency and brake motors
* G: Roller table motors
5. Motor power & 6. Pole & 7. Transmission ratio: see below websites
11kw: http://www.screw-jack.com/110kw-helical-gearmotor-specifications.html
15kw: http://www.screw-jack.com/150kw-helical-gearmotor-specifications.html
18.5kw: http://www.screw-jack.com/185kw-helical-gearmotor-specifications.html
22kw: http://www.screw-jack.com/220kw-helical-gearmotor-specifications.html
30kw: http://www.screw-jack.com/30kw-helical-gearmotor-specifications.html
37kw: http://www.screw-jack.com/37kw-helical-gearmotor-specifications.html
45kw: http://www.screw-jack.com/47kw-helical-gearmotor-specifications.html
55kw: http://www.screw-jack.com/550kw-helical-gearmotor-specifications.html
75kw: http://www.screw-jack.com/750kw-helical-gearmotor-specifications.html
90kw: http://www.screw-jack.com/90kw-helical-gearmotor-specifications.html
110kw, 132kw, 160kw: http://www.screw-jack.com/110kw-132kw-160kw-helical-gearmotor-specifications.html
8. Mounting position: M1, M2, M3, M4, M5, M6 (see below picture)
9. Position of the motor thermal box: 0, 90, 180, 270 degrees (see below picture)
10. Outer diameter of output flange: Φ660 or Φ550
