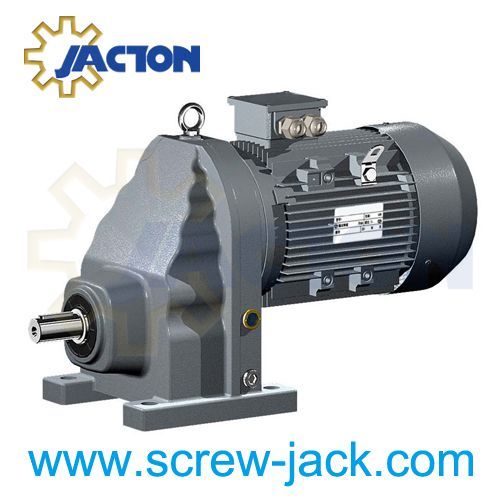

RX107 RXF107 Helical Gearmotor 7.5kw 11kw 15kw 18.5kw 22kw 30kw 37kw 45kw?Features
1. Torque Range: Up to 830Nm.
2. Input Power Rating: 7.5kw, 11kw, 15kw, 18.5kw, 22kw 30kw, 37kw, 45kw.
3. Transmission Gear Reduction Ratios: 1.44 to 6.63.
4. Input Configuration: IEC motor adapter, solid shaft.
5. Output Configuration: solid shaft with key, hollow shaft.
6. Mounting solution: direct type vertical flange-mounted B5, horizontal type?foot-mounted.
7. Carburized and grinded teeth, high load capability, can be added up with other reducers to realize low-speed transmission.
RX107 RXF107 Helical Gearmotor 7.5kw 11kw 15kw 18.5kw 22kw 30kw 37kw 45kw?Dimensions and Motor Power
RX107 RXF107 Helical Gearmotor 7.5kw 11kw 15kw 18.5kw 22kw 30kw 37kw 45kw Selection Guides
RX F 107 Y 7.5 4P 3.25 M1 0 Φ450 1 2 3 4 5 6 7 8 9 10
1. R:?R Series Helical Gearmotor /?Helical Gear Reducer
2. Structure Types:* RX: Foot-mounted single-stage helical gearmotors?with solid shaft output.
* RXF: Flange-mounted?single-stage?helical gearmotors?with solid shaft output.?
* RXS: Foot-mounted,?shaft input?single-stage?helical gearmotors?with solid shaft output.
* RXFS:?Flange-mounted, shaft input?single-stage?helical gearmotors?with solid shaft output.
3. Sizes:?107 (dimensions above)
4. Motor Code:* Y (Y2): Normal (Renew) 3-phase motors
* B:?Explosion-proof?motors
* Z:?Direct-current DC motors
* YEJ: Brake motors
* D: Multi-speed motors
* YVP: Variable frequency?motors
* YCT: Electromagnetic speed regulation motors
* R:?Crane and metallurgy motors
* YVPJ: Variable frequency and brake?motors
* G: Roller table motors
5. Motor power?& 6.?Pole & 7.?Transmission ratio:?see below websites
7.5kw:?http://www.screw-jack.com/75kw-helical-gearmotor-specifications.html
11kw:?http://www.screw-jack.com/110kw-helical-gearmotor-specifications.html
15kw:?http://www.screw-jack.com/150kw-helical-gearmotor-specifications.html
18.5kw:?http://www.screw-jack.com/185kw-helical-gearmotor-specifications.html
22kw:?http://www.screw-jack.com/220kw-helical-gearmotor-specifications.html
30kw:?http://www.screw-jack.com/30kw-helical-gearmotor-specifications.html
37kw:?http://www.screw-jack.com/37kw-helical-gearmotor-specifications.html
45kw:?http://www.screw-jack.com/47kw-helical-gearmotor-specifications.html
8. Mounting position:?M1, M2, M3, M4, M5, M6 (see below picture)
9. Position of the motor thermal box:?0, 90, 180, 270 degrees?(see below picture)
10. Outer diameter of output flange:?Φ450 and?Φ350
