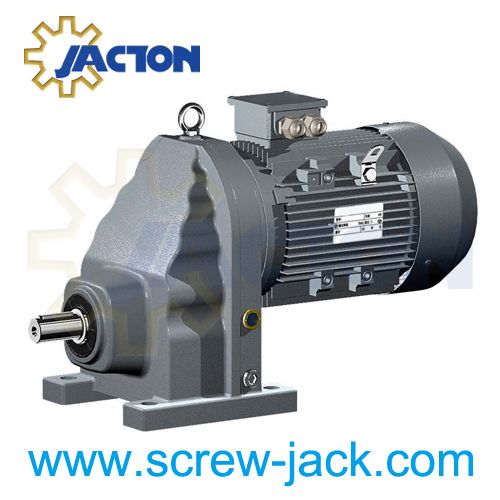

RX37 RXF37 Helical Gearmotor 0.18kw 0.25kw 0.37kw 0.55kw 0.75kw 1.1kw Features
1. Torque Range: Up to 20Nm.
2. Input Power Rating: 0.18kw, 0.25kw, 0.37kw, 0.55kw, 0.75kw, 1.1kw.
3. Transmission Gear Reduction Ratios: 1.62 to 4.43.
4. Input Configuration: IEC motor adapter, solid shaft.
5. Output Configuration: solid shaft with key, hollow shaft.
6. Mounting solution: direct type vertical flange-mounted B5, horizontal type foot-mounted.
7. Carburized and grinded teeth, high load capability, can be added up with other reducers to realize low-speed transmission.
RX37 RXF37 Helical Gearmotor 0.18kw 0.25kw 0.37kw 0.55kw 0.75kw 1.1kw Dimensions and Motor Power
RX37 RXF37 Helical Gearmotor 0.18kw 0.25kw 0.37kw 0.55kw 0.75kw 1.1kw Selection GuidesRX F 37 Y 0.25 4P 3.77 M1 0 Φ160
1 2 3 4 5 6 7 8 9 10
1. R: R Series Helical Gearmotor / Helical Gear Reducer
2. Structure Types:* RX: Foot-mounted single-stage helical gearmotors with solid shaft output.
* RXF: Flange-mounted single-stage helical gearmotors with solid shaft output.
* RXS: Foot-mounted, shaft input single-stage helical gearmotors with solid shaft output.
* RXFS: Flange-mounted, shaft input single-stage helical gearmotors with solid shaft output.
3. Sizes: 37 (dimensions above)
4. Motor Code:* Y (Y2): Normal (Renew) 3-phase motors
* B: Explosion-proof motors
* Z: Direct-current DC motors
* YEJ: Brake motors
* D: Multi-speed motors
* YVP: Variable frequency motors
* YCT: Electromagnetic speed regulation motors
* R: Crane and metallurgy motors
* YVPJ: Variable frequency and brake motors
* G: Roller table motors
5. Motor power & 6. Pole & 7. Transmission ratio: see below websites
0.18kw: http://www.screw-jack.com/018kw-helical-gearmotor-specifications.html
0.25kw: http://www.screw-jack.com/025kw-helical-gearmotor-specifications.html
0.37kw: http://www.screw-jack.com/037kw-helical-gearmotor-specifications.html
0.55kw: http://www.screw-jack.com/055kw-helical-gearmotor-specifications.html
0.75kw: http://www.screw-jack.com/075kw-helical-gearmotor-specifications.html
1.1kw: http://www.screw-jack.com/11kw-helical-gearmotor-specifications.html
8. Mounting position: M1, M2, M3, M4, M5, M6 (see below picture)
9. Position of the motor thermal box: 0, 90, 180, 270 degrees (see below picture)
10. Outer diameter of output flange: Φ160
