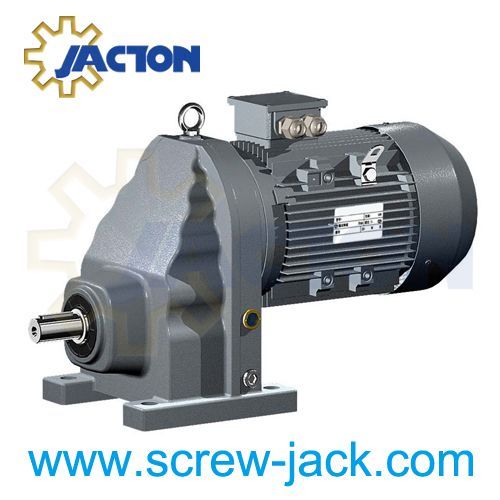

RX77 RXF77 Helical Gearmotor 1.1kw 1.5kw 2.2kw 3kw 4kw 5.5kw 7.5kw 11kw Features
1. Torque Range: Up to 215Nm.
2. Input Power Rating: 1.1kw, 1.5kw, 2.2kw, 3kw, 4kw, 5.5kw, 7.5kw, 11kw.
3. Transmission Gear Reduction Ratios: 1.42 to 8.
4. Input Configuration: IEC motor adapter, solid shaft.
5. Output Configuration: solid shaft with key, hollow shaft.
6. Mounting solution: direct type vertical flange-mounted B5, horizontal type foot-mounted.
7. Carburized and grinded teeth, high load capability, can be added up with other reducers to realize low-speed transmission.
RX77 RXF77 Helical Gearmotor 1.1kw 1.5kw 2.2kw 3kw 4kw 5.5kw 7.5kw 11kw Dimensions and Motor Power
RX77 RXF77 Helical Gearmotor 1.1kw 1.5kw 2.2kw 3kw 4kw 5.5kw 7.5kw 11kw Selection GuidesRX F 77 Y 5.5 4P 3.48 M1 0 Φ250
1 2 3 4 5 6 7 8 9 10
1. R: R Series Helical Gearmotor / Helical Gear Reducer
2. Structure Types:* RX: Foot-mounted single-stage helical gearmotors with solid shaft output.
* RXF: Flange-mounted single-stage helical gearmotors with solid shaft output.
* RXS: Foot-mounted, shaft input single-stage helical gearmotors with solid shaft output.
* RXFS: Flange-mounted, shaft input single-stage helical gearmotors with solid shaft output.
3. Sizes: 77 (dimensions above)
4. Motor Code:* Y (Y2): Normal (Renew) 3-phase motors
* B: Explosion-proof motors
* Z: Direct-current DC motors
* YEJ: Brake motors
* D: Multi-speed motors
* YVP: Variable frequency motors
* YCT: Electromagnetic speed regulation motors
* R: Crane and metallurgy motors
* YVPJ: Variable frequency and brake motors
* G: Roller table motors
5. Motor power & 6. Pole & 7. Transmission ratio: see below websites
1.1kw: http://www.screw-jack.com/11kw-helical-gearmotor-specifications.html
1.5kw: http://www.screw-jack.com/15kw-helical-gearmotor-specifications.html
2.2kw: http://www.screw-jack.com/22kw-helical-gearmotor-specifications.html
3kw: http://www.screw-jack.com/3kw-helical-gearmotor-specifications.html
4kw: http://www.screw-jack.com/4kw-helical-gearmotor-specifications.html
5.5kw: http://www.screw-jack.com/55kw-helical-gearmotor-specifications.html
7.5kw: http://www.screw-jack.com/75kw-helical-gearmotor-specifications.html
11kw: http://www.screw-jack.com/110kw-helical-gearmotor-specifications.html
8. Mounting position: M1, M2, M3, M4, M5, M6 (see below picture)
9. Position of the motor thermal box: 0, 90, 180, 270 degrees (see below picture)
10. Outer diameter of output flange: Φ200 and Φ250
