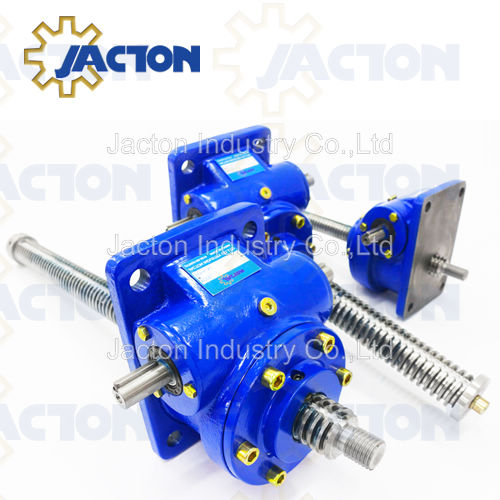

Mechanical screw jack is a product, the innovation of it is due to modularity which allowing to supply a customized product in reasonable times. The coupling with electric motors (either on normal, motor brake or explosion-proof motors) is guaranteed thanks to the predisposition to IEC B5 and B14 flanges. This type of worm gear screw jack is used in many fields where it is necessary to lift considerable weights, such as automated production lines for sheet metal machinery, packaging, printing, textiles, plastics, food, renewable energy and more.
SWL35 Screw Jack Features
1. load capacity 35 ton
2. lift screw diam.100mm
3. lift screw pitch 20mm
4. gear ratio 32:3, 32:1
5. max.5000mm travel stroke
6. manual or electric drive
SWL35 Screw Jack Dimensions
SWL35 Screw Jack Specifications* Note: The dark gray figures in the tables indicates operational restrictions due to thermal limits. Static only (dynamic not permitted). Selection of screw jacks using these figures should only be carried out in consultation with our engineers. When your selection is made within the areas dark gray, you will need to reduce duty cycle or choose larger model screw jacks in order to allow effective heat dissipation.* Conditions: Duty cycle 20%/h or 30%/10min, 20 °C ambient temperature. * Gear Ratios: H: high ratio, L: slow ratio.* Nm: Input torque required, kW: Input power required.If you have new machines or potential projects and would like to learn more information and price about high quality
SWL1, SWL2.5, SWL5, SWL10, SWL20, SWL25, SWL35, SWL50 and SWL100 screw jacks, contact us today with your requirements. Our teams are looking forward to working with you.
Important Note: most of our standard products with stock components, in other words, in stock and fast delivery.
