DC motor worm gear reducer screw jack

When direct coupling a motor to a screw jack, it is necessary to match motor power to screw jack load so the motor does not exceed the maximum power for the screw jack gear set. Standard motor adapters for metric machine screw and ball screw jacks. Designed for standard IEC frame and NEMA frame sizes. Allows direct motor coupling on either side of the screw jack input shaft. Complete with drive coupling and mounting hardware. Motor Adapters for IEC Frames with B5 B14 B35 Flange mounts available on request. Adapters for geared motors are available on request for all types of geared motor or gear head. Motor Adapters for Servo Motors available on request. Motor Adapters for NEMA Frame motors are available on request.

1. Load capacity 10000 kg
2. Worm screw diameter 50mm
3. Worm screw pitch 10mm
4. Worm gear ratio 24:1
5. Self-locking ACME screw, stroke 100 mm

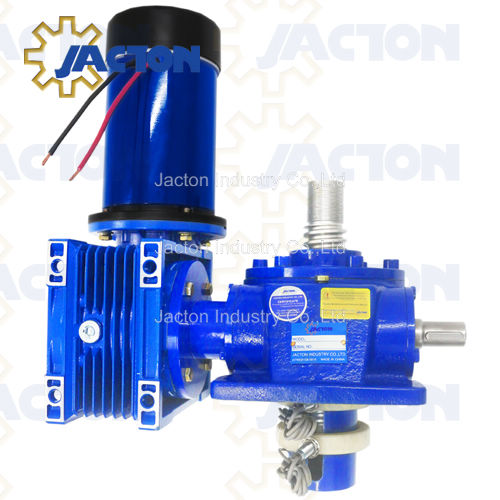

6. 0.75kW DC 24V motor and RV075 worm gear reducer
7. Upright installation
8. Translating screw design
9. Standard with 1-start lifting screw
10. Lifting Screw Ends: threads end M42x4
11. Housing(Gearbox): Ductile Iron
12. Lifting Screw: Carbon steel #45
13. Worm(Input Shaft): Hardened worm, carbon steel #45
14. Worm Gear(Wheel): High strength bronze
15. Accessories: protection tube, motor flange, rv075 worm gear reducer, dc 24v motor, proximity switches.


The standard drive of Screw jacks is made using asynchronous AC motors. The available motor flanges (IEC type and size) for each screw jack size. For other types/sizes of motors, please contact us. We can supply adapters for any kind of electrical motor (AC single phase, AC with integrated inverter, DC, BLDC, stepper, …). Ensure motor is not overdimensioned for the selected screw jack size.

End of Travel Proximity Sensors Sensor Ki. Inductive Proximity Sensors as standard, others available on request. No contact so no wearing parts. 2 wire sensor for either Normally Closed (NC) or Normally Open (NO) switching. Sensor has rugged one-piece metal housing. Optical setting aid with 2 LED colour settings:- Red LED indicates just in sensing range. Yellow LED only indicates within 80% safe sensing range. M12 plug in connection for fast change-ability. M12 sockets available straight or angled with 5-m cable (other cable lengths available on request). Full 360° visibility for switching with 4 yellow LED's at 90° offset. Sensor kit includes - sensor, mounting ring, target ring and modification to screw jacks cover pipe.

If you have new machines or projects and would like to learn more information and price about high quality DC motor worm gear reducer screw jack, contact us today with your requirements. Our teams are looking forward to working with you. Important Note: most of our standard parts of motorized worm gear reducer screw jack with stock components, in other words, in stock and fast delivery.
