THE NAME:

JTPH210 right angle hollow shaft gearbox

Model: JTPH210
Categories: Hollow Shaft Gearbox »
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:

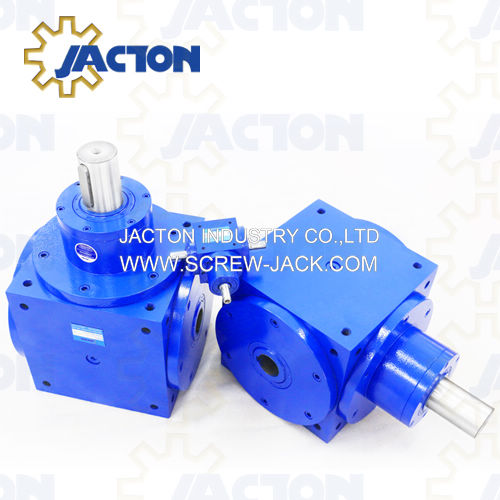

JTPH210 right angle hollow shaft gearbox Pictures


JTPH210 right angle hollow shaft gearbox Descriptions
1. Solid input shaft, hollow output shafts.
2. Maximum allowable hollow shaft diameter 45mm, custom made hollow shafts with smaller sizes.
3. Cubic housing, 210x210x210mm, with all-round tapped holes for universal mounting, 6 possible universal mounting positions, can be easily mounted in any direction.
4. Standard bevel gear ratios 1:1 and 2:1, custom made 1.5:1, 3:1, 4:1 and 5:1 reduction ratios.
5. Drive shafts arrangements available 2-way, 3-way, and 4-way.
6. Drive shafts can be rotated in both clockwise and counter-clockwise rotation direction.
7. Mounting positions available in horizontal mount, over hung mount and wall mount.
8. Maximum allowable torque 519.5 N.m
9. Maximum allowable power 67.5 kw.
10. Maximum allowable speed 1450 rpm.
11. Low backlash, quiet low noise, low running temperature.

JTPH210 right angle hollow shaft gearbox Specifications


JTPH210 right angle hollow shaft gearbox Dimensions
1. Standard solid input shaft diameter 45mm, custom made smaller or larger sizes input shafts.
2. Non-standard output hollow shafts sizes, maximum allowable output hollow shaft diameter 45mm, custom made hollow shafts with smaller sizes.
