THE NAME:

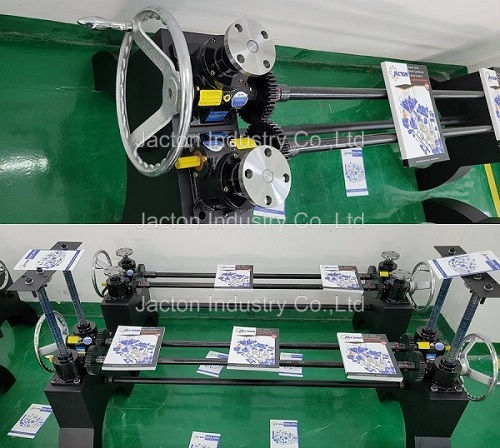

manual hand cranked screw jack motion platform
Model: 2.5 tonne kit, 5 tonne kit
Categories: Hand Crank Screw Jack for Lifting Tables »
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:
We are manufacture and sale Hand Operated Screw Lift Manual Acme Screw Jack Vintage Industrial Hure Crank Dining Table Hure Base, manual worm gear screw jack, hand screw jacks. Manual hand cranked screw jack motion platform lift mechanism includes two 2.5 ton screw mechanisms for crank table base, four 2.5 ton screw mechanisms for crank table base, and two 5 ton screw mechanisms for crank table base. All our screw mechanisms have self-locking function, don't require any lock mechanism, they will hold and stop any position without turning hand crank.
* Crank Screw Lift Mechanism 2.5-Ton Kit with Two Lifting Points (Small-Size, or Normal Table Base) is consist of two pieces 2.5-ton screw mechanisms that support and adjust height, two pieces 200mm diameter handwheel (cast iron), two pieces couplings and one piece connecting rod.
* Crank Screw Lift Mechanism 2.5-Ton Kit with Four Lifting Points (Big, or Super-Big Table Base) is consist of four pieces 2.5-ton screw mechanisms that support and adjust height, two pieces 300mm diameter handwheel (cast iron), four pieces transmission gears, four pieces couplings and two piece connecting rods.
* Crank Screw Lift Mechanism 5-Ton Kit with Two Lifting Points (Normal, or Big Table Base) is consist of two pieces 5-ton screw mechanisms that support and adjust height, two pieces 300mm diameter handwheel (cast iron materials), two pieces couplings and one piece connecting rod.
Important Note: Avoid slow lifting speed, we provide double lead screw mechanism, which is two times faster than normal single lead screw mechanism.
Important Note: Connecting rod length 36", 43", 48", 52", 60". Can be customized.
Important Note: Height adjustment 8", 10", 12", 14", 16", 18", 20". Can be customized.
Important Note: Handwheel diameter 6", 8", 10", 12", 16".
Important Note: Paint color: no paint, black, blue, grey.
Important Note: Available in electric motorized screw lift mechanism with single phase motor, dc motor or electric hand driller.
Worm screw jack has self-locking acme screw. Lifting, lowering, pushing, pulling and rolling linear motions, electric driven,manual operated or both are available.Single unit, in pairs or Multi-units arrangement available.
ball screw jack has Ball lifting screw without self-locking. High speed, high precision,high efficiency, high duty cycle,high frequency operation,low drive torque,long service life. Individually or multiple ball screw jack lift system arrangements are available.
Lifting and actuation systems, screw jacks is a modular mechanical system, for a complete and versatile solution, which transforms rotary movements into push/pull linear movements.
* Trapezoidal screw in AISI 304, stainless steel,
* Case in anodized aluminium, shafts and gears treated with wear-resistant surface hardening
* Trapezoidal screw with non-standard lenghts in mm
* Maintenance-free: lubricated with long-life by grease
* Can be used individually or combined using flexible shafts, couplings and gearboxes
* Manual or motorized motion
* Possibility to apply a display unit
* For applications with displays, motors, multiple screw jacks and combinations with flexible or rigid shafts and gearboxes. There are many possibilities of application: wherever it is necessary to lift important loads, adjust heights or format changes in automatic machines for plastics, metals, food, textile, printing, packaging, labeling, filling, assembly lines, lifting/adjustment platforms, elevation/lifting mechanisms.
If you would like to learn more information and price about manual hand cranked screw jack motion platform, contact us today. Our teams are looking forward to working with you.
* Crank Screw Lift Mechanism 2.5-Ton Kit with Two Lifting Points (Small-Size, or Normal Table Base) is consist of two pieces 2.5-ton screw mechanisms that support and adjust height, two pieces 200mm diameter handwheel (cast iron), two pieces couplings and one piece connecting rod.
* Crank Screw Lift Mechanism 2.5-Ton Kit with Four Lifting Points (Big, or Super-Big Table Base) is consist of four pieces 2.5-ton screw mechanisms that support and adjust height, two pieces 300mm diameter handwheel (cast iron), four pieces transmission gears, four pieces couplings and two piece connecting rods.
* Crank Screw Lift Mechanism 5-Ton Kit with Two Lifting Points (Normal, or Big Table Base) is consist of two pieces 5-ton screw mechanisms that support and adjust height, two pieces 300mm diameter handwheel (cast iron materials), two pieces couplings and one piece connecting rod.
Important Note: Avoid slow lifting speed, we provide double lead screw mechanism, which is two times faster than normal single lead screw mechanism.
Important Note: Connecting rod length 36", 43", 48", 52", 60". Can be customized.
Important Note: Height adjustment 8", 10", 12", 14", 16", 18", 20". Can be customized.
Important Note: Handwheel diameter 6", 8", 10", 12", 16".
Important Note: Paint color: no paint, black, blue, grey.
Important Note: Available in electric motorized screw lift mechanism with single phase motor, dc motor or electric hand driller.
Worm screw jack has self-locking acme screw. Lifting, lowering, pushing, pulling and rolling linear motions, electric driven,manual operated or both are available.Single unit, in pairs or Multi-units arrangement available.
ball screw jack has Ball lifting screw without self-locking. High speed, high precision,high efficiency, high duty cycle,high frequency operation,low drive torque,long service life. Individually or multiple ball screw jack lift system arrangements are available.
Lifting and actuation systems, screw jacks is a modular mechanical system, for a complete and versatile solution, which transforms rotary movements into push/pull linear movements.
* Trapezoidal screw in AISI 304, stainless steel,
* Case in anodized aluminium, shafts and gears treated with wear-resistant surface hardening
* Trapezoidal screw with non-standard lenghts in mm
* Maintenance-free: lubricated with long-life by grease
* Can be used individually or combined using flexible shafts, couplings and gearboxes
* Manual or motorized motion
* Possibility to apply a display unit
* For applications with displays, motors, multiple screw jacks and combinations with flexible or rigid shafts and gearboxes. There are many possibilities of application: wherever it is necessary to lift important loads, adjust heights or format changes in automatic machines for plastics, metals, food, textile, printing, packaging, labeling, filling, assembly lines, lifting/adjustment platforms, elevation/lifting mechanisms.
If you would like to learn more information and price about manual hand cranked screw jack motion platform, contact us today. Our teams are looking forward to working with you.
