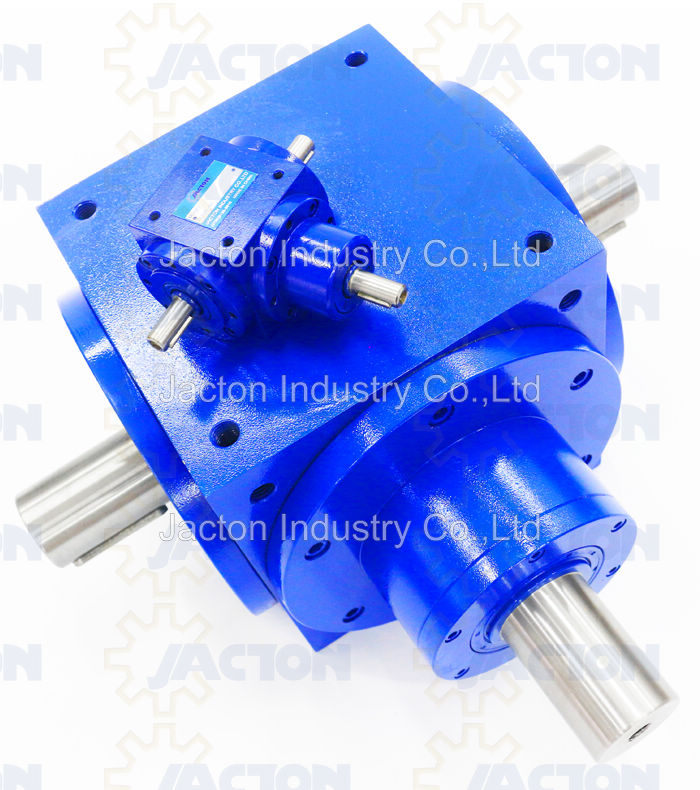

Sample Part Number Of Cubic Bevel Gearboxes

Model: JTP90-280, JTH90-280, BSS90-240
Categories: JTP Miter Gearbox »
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:


Sample Part Number Of Cubic Bevel Gearboxes

JTP / JTH / BSS  -  140  -  2:1  -  A  -  B3
              1                 2        3       4     5

1. Gearbox Series
JTP: JTP series Solid Shaft miter gearbox
JTH: JTH series Hollow Shaft miter gearbox

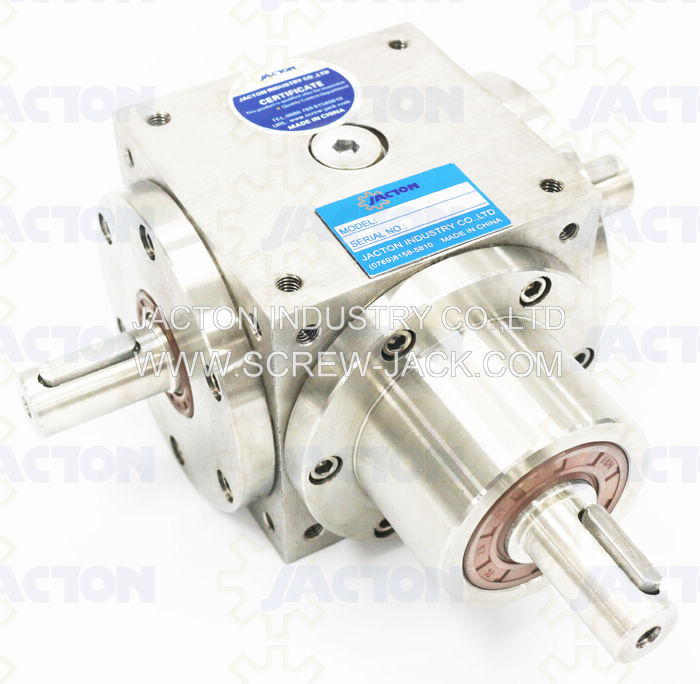

BSS: BSS series Stainless Steel miter gearbox

2. Model
JTP series Solid Shaft miter gearbox Available models: JTP65, JTP90, JTP110, JTP140, JTP170, JTP210, JTP240 and JTP280.
JTH series Hollow Shaft miter gearbox Available models: JTH90, JTH110, JTH140, JTH170, JTH210, JTH240 and JTH280.
BSS series Stainless Steel miter gearbox Available models: BSS90, BSS110, BSS140, BSS170, BSS210, BSS240 and BSS280.
Before selecting models, please check corresponding models technical parameter table.

3. Gear Ratio
* Gear ratios such as 1:1, 1.5, 2:1, 3:1, 4:1 and 5:1.

4 & 5. Input & Output Speed (RPM)
* 1:1 ratio, input speed = output speed.
* 1.5:1 ratio, input speed = 1.5 times output speed.
* 2:1 ratio, input speed = 2 times output speed.
* 3:1 ratio, input speed = 3 times output speed.
* 4:1 ratio, input speed = 4 times output speed.
* 5:1 ratio, input speed = 5 times output speed.
Important Note: max. input and output speed 1500rpm, higher speed like 2000rpm, 3000rpm, please contact JACTON sales.

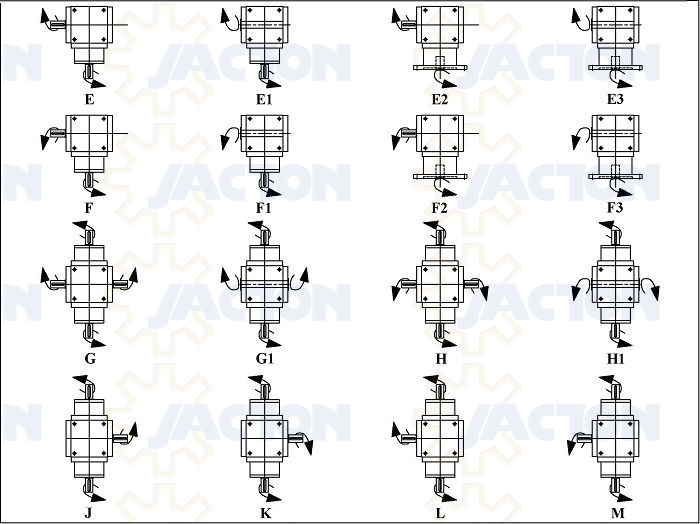

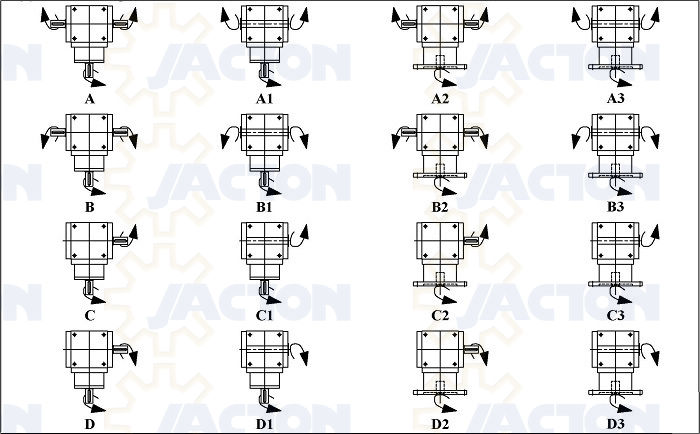

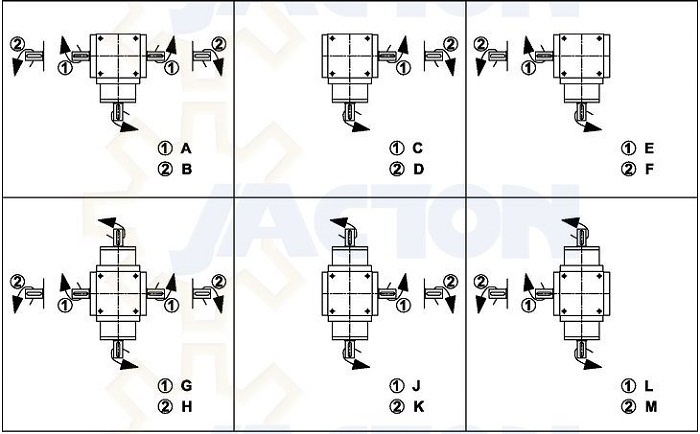

6. Shaft Arrangements And Direction Of Shaft Rotating
Important Note: drive shafts can be rotated in both clockwise and counter-clockwise rotation directions.
A: three way shafts, input shaft CW, both sides output shafts CW.
B: three way shafts, input shaft CW, both sides output shafts CCW.
C: two way shafts, input shaft CW, right side output shaft CW.
D: two way shafts, input shaft CW, right side output shaft CCW.
E: two way shafts, input shaft CW, left side output shaft CW.
F: two way shafts, input shaft CW, left side output shaft CCW.
G: four way shafts, input shaft CW, inline input shaft CCW, both sides output shaft CW.
H: four way shafts, input shaft CW, inline input shaft CCW, both sides output shaft CCW.
J: three way shafts, input shaft CW, inline input shaft CCW, right side output shaft CW.
K: three way shafts, input shaft CW, inline input shaft CCW, right side output shaft CCW.
L: three way shafts, input shaft CW, inline input shaft CCW, left side output shaft CW.
M: three way shafts, input shaft CW, inline input shaft CCW, left side output shaft CCW.

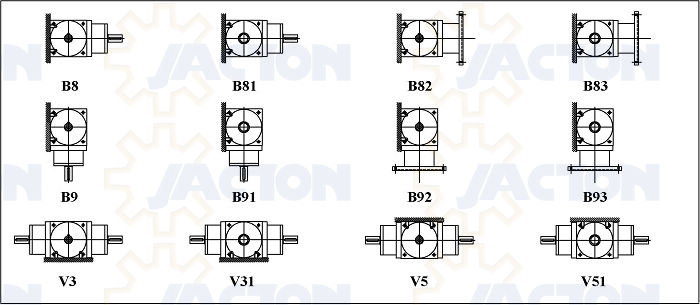

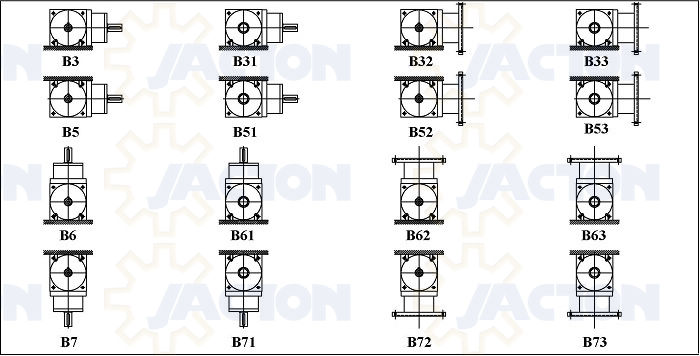

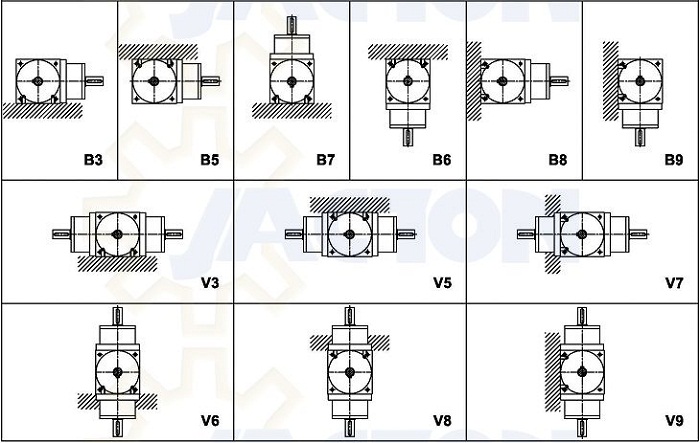

7. Mounting Position
* Horizontal mount codes: B3, B7, V3, V6
* Over hung mount codes: B5, B6, V5, V8
* Wall mount codes: B8, B9, V7, V9
