THE NAME:
Sample Part Number Of Miter Gearbox Aluminum Alloy
Model: JTA10 - JTA24
Categories: JTA Miter Gearbox(Mini) »
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:
Sample Part Number Of Miter Gearbox Aluminum Alloy
JTA - 15 - 1:1 - 1-LR
1 2 3 4
JTA: JTA series alu. miter gearbox
2. Model
Model code: 15, solid input and output shaft dia. 15mm.
Available models: JTA10, JTA15, JTA20 and JTA24.
Before selecting models, please check corresponding models technical parameter table.
Available models: JTA10, JTA15, JTA20 and JTA24.
Before selecting models, please check corresponding models technical parameter table.
* Gear ratios such as 1:1 or 2:1.
4 & 5. Input & Output Speed (RPM)
* 1:1 ratio, input speed = output speed.
* 2:1 ratio, input speed = 2 times output speed.

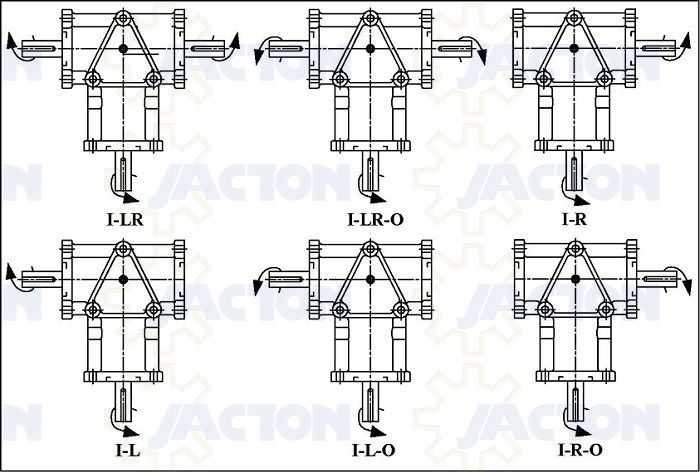

6. Shaft Arrangements And Direction Of Shaft Rotating
Important Note: drive shafts can be rotated in both clockwise and counter-clockwise rotation directions.
* 1-LR: 3 way drive shafts, input shaft CW, two output shafts CW.
* 1-LR-O: 3 way drive shafts, input shaft CW, two output shafts CCW.
* 1-R: 2 way drive shafts, input shaft CW, right side output shafts CW.
* 1-R-O: 2 way drive shafts, input shaft CW, right side output shafts CCW.
* 1-L: 2 way drive shafts, input shaft CW, left side output shafts CW.
* 1-L-O: 2 way drive shafts, input shaft CW, left side output shafts CCW.
6. Shaft Arrangements And Direction Of Shaft Rotating
Important Note: drive shafts can be rotated in both clockwise and counter-clockwise rotation directions.
* 1-LR: 3 way drive shafts, input shaft CW, two output shafts CW.
* 1-LR-O: 3 way drive shafts, input shaft CW, two output shafts CCW.
* 1-R: 2 way drive shafts, input shaft CW, right side output shafts CW.
* 1-R-O: 2 way drive shafts, input shaft CW, right side output shafts CCW.
* 1-L: 2 way drive shafts, input shaft CW, left side output shafts CW.
* 1-L-O: 2 way drive shafts, input shaft CW, left side output shafts CCW.
