THE NAME:

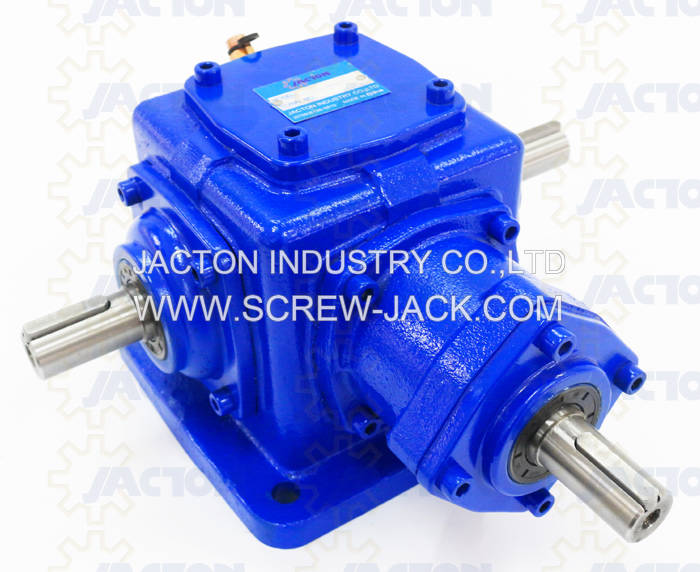

Sample Part Number Of Spiral Bevel Gearboxes

Model: JT15 - JT85
Categories: JT Miter Gearbox(T) »
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:


Sample Part Number Of Spiral Bevel Gearboxes

JT  -  25  -  2:1  -  1-LR  -  B3
    1        2       3          4        5

1. Gearbox Series
JT: JT series miter gearbox

2. Model
JT series miter gearbox Available models: 15, 19, 25, 32, 40, 45, 50, 60, 72 and 85.
Before selecting models, please check corresponding models technical parameter table.





3. Gear Ratio
* Gear ratios such as 1:1, 1.5, 2:1, 2.5:1, 3:1, 4:1 and 5:1.

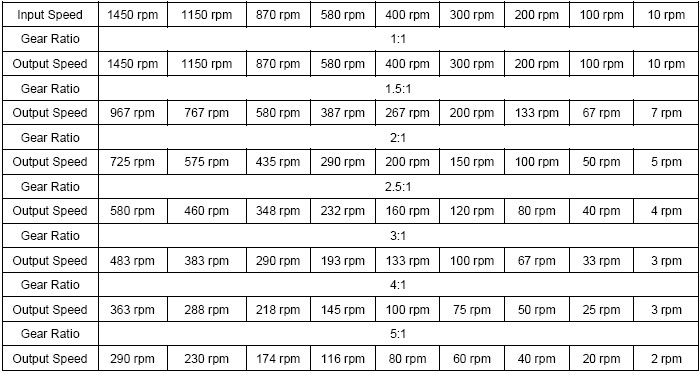

4 & 5. Input & Output Speed (RPM)

* 1:1 ratio, input speed = output speed.

* 1.5:1 ratio, input speed = 1.5 times output speed.
* 2:1 ratio, input speed = 2 times output speed.
* 2.5:1 ratio, input speed = 2.5 times output speed.

* 3:1 ratio, input speed = 3 times output speed.
* 4:1 ratio, input speed = 4 times output speed.
* 5:1 ratio, input speed = 5 times output speed.
Important Note: max. input and output speed 1500rpm, higher speed like 2000rpm, 3000rpm, please contact JACTON sales.


6. Shaft Arrangements And Direction Of Shaft Rotating
There are 42 type shaft arrangements and direction of shaft rotating for customers selection, please check below 1-LR(O) series, 1-UD(O) series, U-LR(O) series, D-LR(O) series, 1-1-LR(O) series, 1-1-UD(O) series, U-D-LR(O) series shaft arrangements and direction of shaft rotating.
Important Note: Drive shafts can be rotated in both forward and reverse direction.

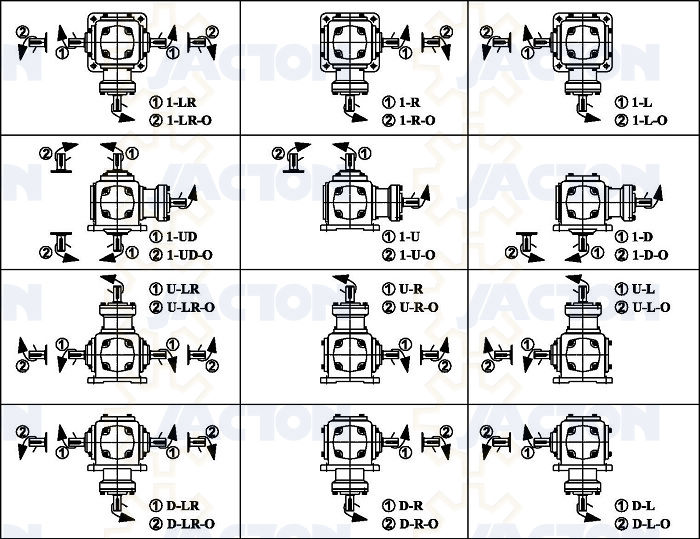

1-LR(O) Series: 1-LR, 1-LR-O, 1-L, 1-L-O, 1-R, 1-R-O shaft arrangements and direction of shaft rotating.
1-UD(O) Series: 1-UD, 1-UD-O, 1-U, 1-U-O, 1-D, 1-D-O shaft arrangements and direction of shaft rotating.
U-LR(O) Series: U-LR, U-LR-O, U-L, U-L-O, U-R, U-R-O shaft arrangements and direction of shaft rotating.
D-LR(O) Series: D-LR, D-LR-O, D-L, D-L-O, D-R, D-R-O shaft arrangements and direction of shaft rotating.

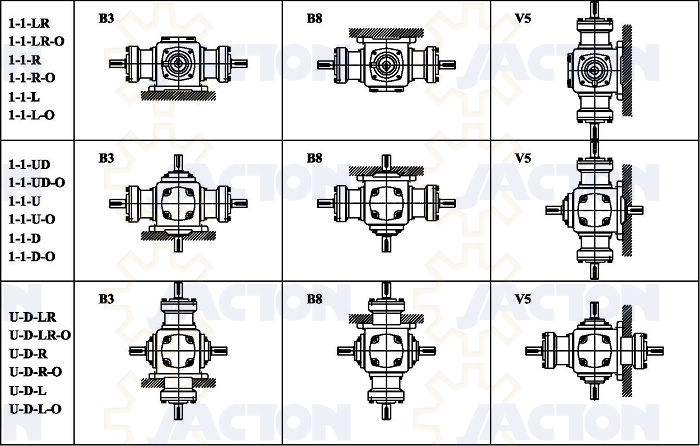

1-1-LR(O) Series: 1-1-LR, 1-1-LR-O, 1-1-L, 1-1-L-O, 1-1-R, 1-1-R-O shaft arrangements and direction of shaft rotating.
1-1-UD(O) Series: 1-1-UD, 1-1-UD-O, 1-1-U, 1-1-U-O, 1-1-D, 1-1-D-O shaft arrangements and direction of shaft rotating.
U-D-LR(O) Series: U-D-LR, U-D-LR-O, U-D-R, U-D-R-O, U-D-L, U-D-L-O shaft arrangements and direction of shaft rotating.

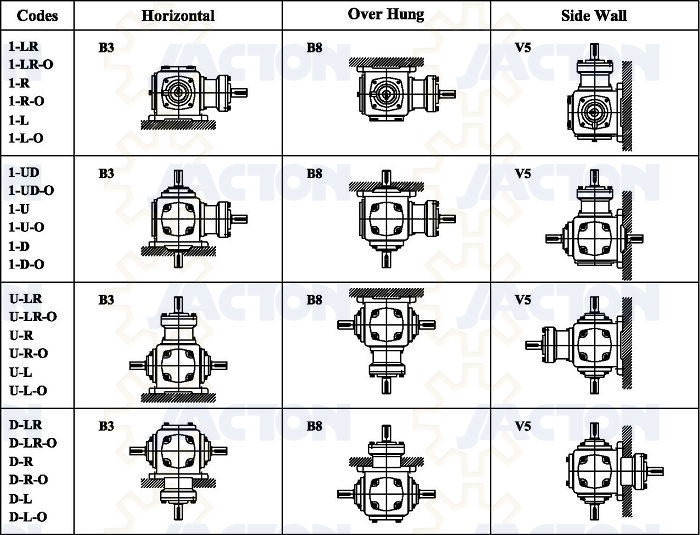

7. Mounting Position
* B3: Horizontal Mounting Position
* B8: Over Hung Mounting Position
* V5: Side Wall Mounting Postion
