THE NAME:

screw jacks to lift systems

Model: 1-ton - 200-tons capacity
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:
If multiple machine screw jacks are connected in a mechanically linked lift system then the complete system may be considered self-locking. Alternatively, to be sure, include a brake on the system either as a stand alone device or as a brake motor. Providing dependable linear actuator systems from sports arenas, education, medical to heavy metal industry to aviation we have the ability to, quite literally, raise the roof.

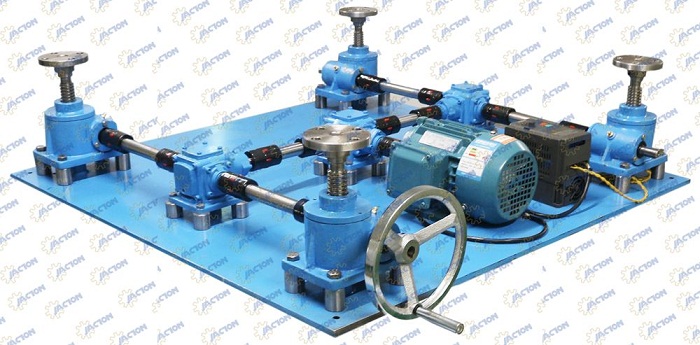

Clients can choose two jacks system, three jacks system, four jacks system, six jacks system, eight jacks system for your practical application. Notes: don't ignore miter gearbox efficiency 94%.

Different Types of Screw Jack For Lifting System
1. Worm gear maching screw jack with load 1/4 ton - 100 tons, customized larger capacity 250 tons.
2. Worm gear ball screw jack with load 1 ton - 35 tons.
3. Bevel gear screw jack with load 2.5 ton - 50 tons.

Different Versions of Screw Jack For Lifting System
1. Translating Screw Version:
 The rotation of the worm gear acts directly on the lift screw and the lift screw translates linearly. Unless the end of the lift screw is fixed (dependent on customer requirements), the lift screw will tend to rotate due to friction between the screw threads.
2. Anti-rotation with Keyed Screw Version: As above but the lift screw is keyed such that it cannot rotate. This is important if the lift screw end is not to be fixed to the load. Both the keyed and un-keyed translating screws are commonly used in applications where more than one screw jack is attached to a common load.
3. Rotating Screw Version: The lift screw is fixed to the worm gear so rotation of the worm gear causes rotation of the lift screw thus translating the nut along the lift screw when the nut is attached to the load.

Advantages of Screw Jack For Lifting System
1. Simple and inexpensive solution in comparison with hydraulic and pneumatic systems.
2. A defined load can be moved to an exact position at a preset speed.
3. Several Screw jacks can be synchronised lifting systems by means of connection shafts and an electronic controller, for example in stage construction.
3. Can be positioned very precisely.
4. They can exert the same forces in both the pushing and pulling direction.
5. An economically very interesting solution compared to pneumatic and hydraulic systems.
6. Many technically ideal and economically interesting solutions can be realised with our modular construction kit concept.
7. Screw jacks are valued by design engineers as standard machine elements.

Applications of Screw Jack For Lifting System
Screw Jack is the ideal product to push, pull, lift, lower and position object loads. They are essential components in automated machinery because of high reliability and synchronization. Additionally, screw jack is increasingly finding uses as alternatives to conventionally pneumatic and hydraulic systems.
1. Platform lifting applications
2. Opening and closing of penstocks
3. Industrial process
4. Roll form machinery
5. Food processing machinery
6. Construction sectorMechanical lifting applications
7. Bridge jacks for road and bridge lifting
8. Lift tables
9. Defense industry
10. Stage setup applicationsShipyards
11. Mining industry
12. Gypsum factories
13. Sheet metal forming machinery
14. Paper, press, printing industry

If you have new machines or potential projects and would like to learn more information and price about high quality worm gear screw jack systems, contact us today with your requirements. Our teams are looking forward to working with you. Important Note: most of our standard products with stock components, in other words, in stock and fast delivery.
