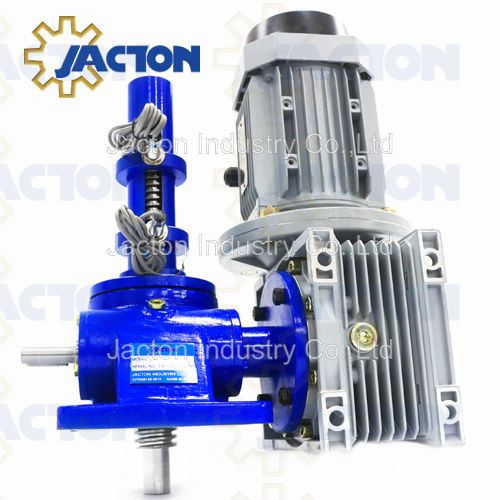

Flange mounted double input shaft electric screw Jacks. Electric machine screw jack,also called motorized machine screw jack, is very popular for lifting. Electric motor includes high precision servo motor, helical gear motor, stepper motor, worm gear motor, 3-phases asynchronous motor and 12v, 24v, 48v dc motor and dc gear motor etc.
1. Load capacity 5 tons
2. Worm screw dia. 40mm
3. Worm screw pitch 7mm
4. Worm gear ratio 6:1
5. Self-locking acme screw, stroke 75 mm
6. 1HP worm gear motor
7. Inverted mount
8. Translating screw design
9. Standard with 1-start lifting screw
10. Lifting Screw Ends: plain end
11. Housing(Gearbox): Ductile Iron
12.Lifting Screw: Carbon steel #45
13. Worm(Input Shaft): Hardened worm, carbon steel #45
14. Worm Gear(Wheel): High strength bronze
15. Accessories: motor flange, worm gear reducer, limit switch and potentiometer
