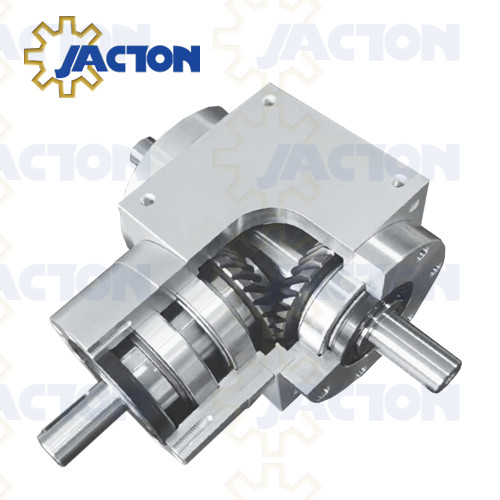

JAC-L Series Low Backlash Planetary Gearboxes For Robotics

Model: JAC065L - JAC210L
Place of Origin: Made In China
Brand Name: JACTON
Download:
Description:
JAC-L Series Low Backlash Planetary Gearboxes For Robotics. JAC-L series is a right angle spiral bevel gearbox with dual output shafts and input shaft configuration. High radial load capacity and high precision make the JAC-L series suitable for servo applications as well as power transmission solutions. High precision spiral bevel gearboxes 1:1 ratio are constructed with four drive shafts and three spiral bevel gears, or right angle spiral bevel gearbox with three shafts joined by three spiral bevel gears. Suitable for servo and power transmission or line shaft applications, single input wit three driven output shafts and dual shaft application that require a manual drive option.


JAC-L Series Low Backlash Planetary Gearboxes For Robotics Features
* Application in Precision Rotary Axis Drives, Travel Gantry and Columns, Material Handling Axis Drives, Industrial Areas in Automation, Aerospace, and Machine Tool and Robotics.
* Compact structure, integration of alloy aluminum body to ensure the maximum rigidity and corrosion resistance, and easy to assemble with multiple precision machined surface.
* High precision spiral bevel gearing and powerful stability., with optimization design, the contact tooth surface of uniform load, allowable hith torque output.
* Gear is made of high strength alloy steel carburizing, grinding precision.
* The design of multiple alloy steel output and input shaft applies to various industrial requirements.
* The simplified structure design with high torque and low backlash applies to applications of precision servo.
* Easy mount, with maintenance-free, no need to replace the grease and long service life. Flexible input mounting dimensions, and Adaptor flange solution available.

* JAC-L Series: Shaft Input Series High precision spiral bevel gearbox, and Solid Output Shaft.
* Models: JAC065L, JAC075L, JAC090L, JAC0110L, JAC0140L, JAC0170L, JAC210L.

* Gear Ratios: Spiral bevel gear set of high precision grinding can achieve from 1:1 to 6:1 as standard.
* Stage: 1 stage (1:1 to 6:1).
* Rated Output Torque (N.m): From 12N.m to 1300N.m.
* Fault Stop Torque = 2 Times of Rated Output Torque.
* Max. Input Speed (rpm): From 2500RPM to 3500RPM.
* Rated Input Speed (rpm): From 1500RPM to 2500RPM.
* Low Backlash (arcmin): From 6 arcmin to 8 arcmin.
* Max. Radial Force (N) Of Output Shaft: From 900N to 11500N.
* Max. Axial Force (N) Of Output Shaft: From 450N to 5750N.
* Max. Radial Force (N) Of Input Shaft: From 700N to 7800N.
* Max. Axial Force (N) Of Input Shaft: From 350N to 3900N.
* Low Noise Level (dB): From 71dB to 82dB.
* High Efficiency (%): 98%.
* Average Life Span (hr): 20000 hours.
* Lubrication: Synthetic lubrication grease
* Mass Moments of Inertia (kgcm2): From 0.43 kgcm2 to 195.4 kgcm2.

JAC-L Series Low Backlash Planetary Gearboxes For Robotics Specifications



JAC-L Series Low Backlash Planetary Gearboxes For Robotics Dimensions
