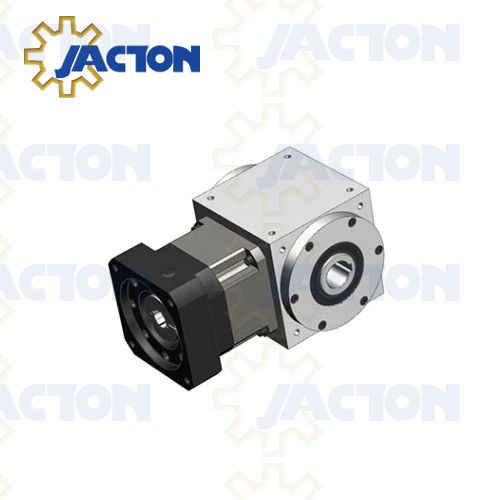

JAC-FH Series Low Backlash Precision Gearboxes For Robotics

Model: JAC065FH - JAC210FH
Place of Origin: Made In China
Brand Name: JACTON
JAC-FH Series Low Backlash Precision Gearboxes For Robotics. JAC-FH series is a right angle spiral bevel gearbox with hollow keyed output and motor flange input configuration. High radial load capacity and high precision make the JAC-FH series suitable for servo applications as well as power transmission solutions. Application in Precision Rotary Axis Drives, Travel Gantry and Columns, Material Handling Axis Drives, Industrial Areas in Automation, Aerospace, and Machine Tool and Robotics. Compact structure, integration of alloy aluminum body to ensure the maximum rigidity and corrosion resistance, and easy to assemble with multiple precision machined surface.

JAC-FH Series Low Backlash Precision Gearboxes For Robotics Features
* High precision spiral bevel gearing and powerful stability, with optimization design, the contact tooth surface of uniform load, allowable hith torque output.
* Gear is made of high strength alloy steel carburizing, grinding precision.
* The design of multiple alloy steel output and input shaft applies to various industrial requirements.
* The simplified structure design with high torque and low backlash applies to applications of precision servo.
* Easy mount, with maintenance-free, no need to replace the grease and long service life. Flexible input mounting dimensions, and Adaptor flange solution available.

* JAC-FH Series: Flange Series Servo Planetary Gearbox, and Hollow Output Shaft with Key Way.
* Models: JAC065FH, JAC075FH, JAC090FH, JAC0110FH, JAC0140FH, JAC0170FH, JAC210FH.

* Gear Ratios: Spiral bevel gear set of high precision grinding can achieve from 1:1 to 100:1 as standard, custom-made max. 400:1 ratio.
* Stage: 1 stage (1:1 to 6:1), 2 stage (8:1 to 30:1), 3 stage (32:1 to 100:1).
* Rated Output Torque (N.m): From 12N.m to 1300N.m.
* Fault Stop Torque = 2 Times of Rated Output Torque.
* Max. Input Speed (rpm): From 2000RPM to 5000RPM.
* Rated Input Speed (rpm): From 1500RPM to 2500RPM.
* Low Backlash (arcmin): From 6 arcmin to 15 arcmin.
* Max. Radial Force (N) Of Output Shaft: From 900N to 11500N.
* Max. Axial Force (N) Of Output Shaft: From 450N to 5750N.
* Low Noise Level (dB): From 71dB to 82dB.
* High Efficiency (%): From 94% to 98%.
* Average Life Span (hr): 20000 hours.
* Mass Moments of Inertia (kgcm2): From 0.15 kgcm2 to 195.4 kgcm2.

JAC-FH Series Low Backlash Precision Gearboxes For Robotics Specifications

JAC-FH Series Low Backlash Precision Gearboxes For Robotics Weight (kg)

JAC-FH Series Low Backlash Precision Gearboxes For Robotics Dimensions
